TECHNICAL INFORMATION
Identification
- Product Category
- SEALS
- Part Number
- E12581500
- Legacy Part Number
- 21771000001
Other properties
- Seal type
- Single Wire Seal
- Cable diam min [mm]
- 1.4
- Cable diam max [mm]
- 2

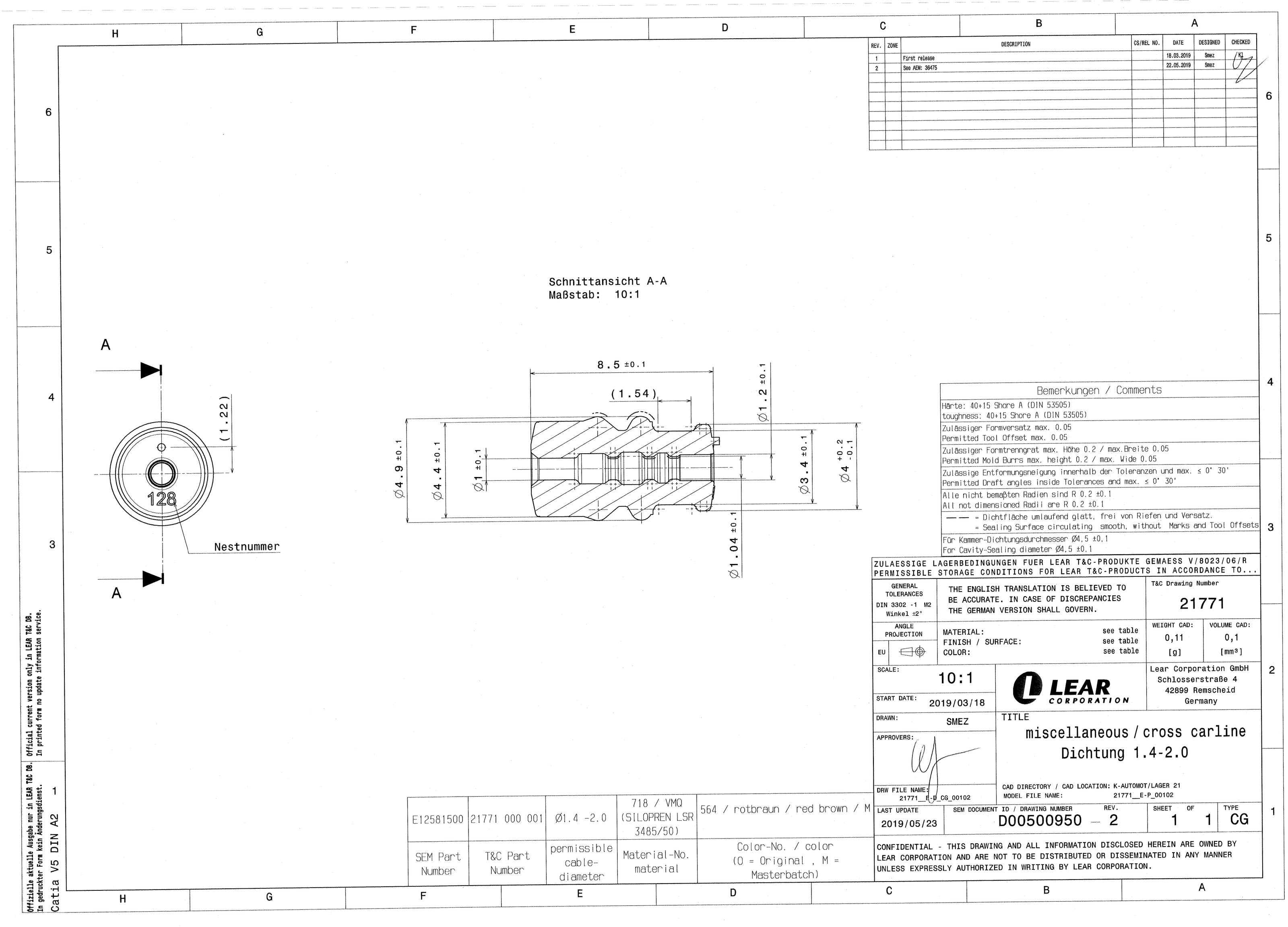

2D Drawing
2D Drawing E12581500
E12581500 - Single Wire Seal
Part Number: E12581500
Product Specification
Previously cataloged under part number 21771000001.
A single wire seal that provides environmental protection at the cable entry point of an occupied connector cavity. Engineered to form a reliable seal around the wire, it helps prevent water and contaminant ingress while maintaining connector performance. Manufactured from VMQ, it accepts cable insulation diameters from 1.4 mm to 2 mm.
Part Number: E12581500.
