TECHNICAL INFORMATION
Identification
- Product Category
- SEALS
- Part Number
- E12581600
- Legacy Part Number
- 21772000001
Other properties
- Seal type
- Single Wire Seal
- Cable diam min [mm]
- 1.5
- Cable diam max [mm]
- 1.9

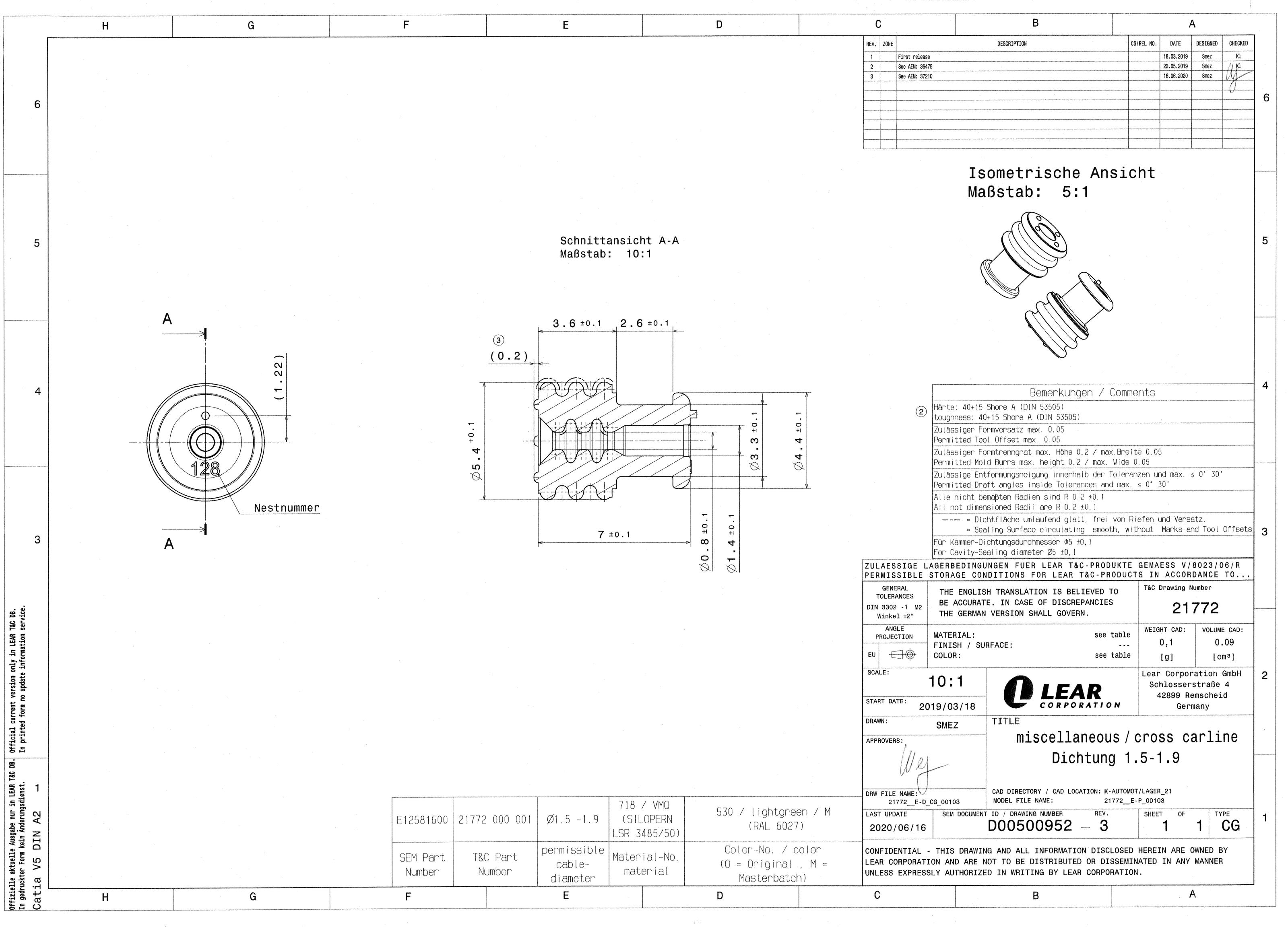

2D Drawing
2D Drawing E12581600
E12581600 - Single Wire Seal
Part Number: E12581600
Product Specification
Previously cataloged under part number 21772000001.
A single wire seal that provides environmental protection at the cable entry point of an occupied connector cavity. Engineered to form a reliable seal around the wire, it helps prevent water and contaminant ingress while maintaining connector performance. Constructed from VMQ (silicone rubber), it accepts cable insulation diameters from 1.5 mm to 1.9 mm.
Part Number: E12581600.
