TECHNICAL INFORMATION
Identification
- Product Category
- SEALS
- Part Number
- 320455AA6
- Legacy Part Number
- 13214627619
Other properties
- Seal type
- Single Wire Seal
- Nominal cavity hole diameter [mm]
- 14.4
- Cable diam min [mm]
- 4
- Cable diam max [mm]
- 4.3

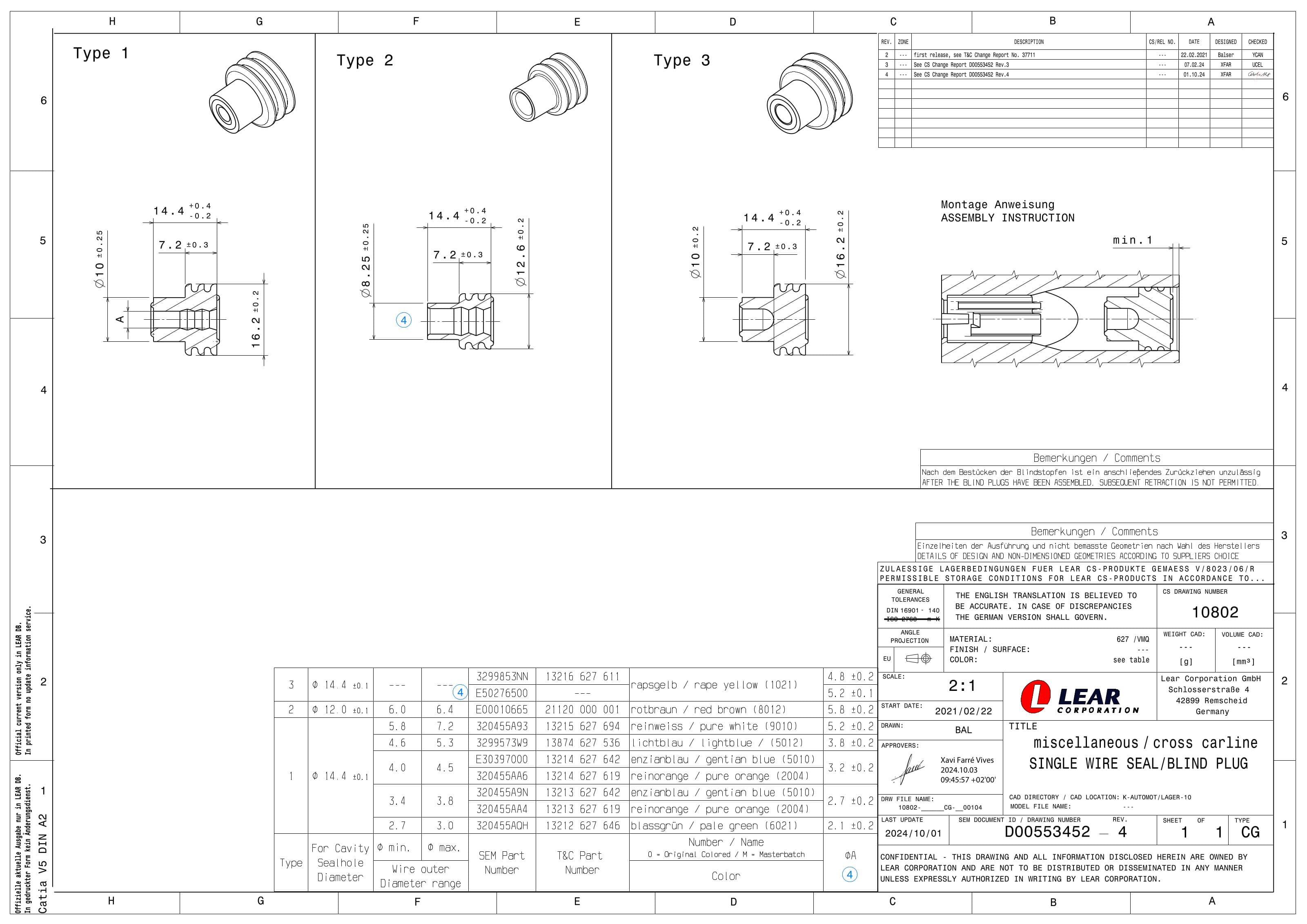

2D Drawing
2D Drawing 320455AA6
320455AA6 - Single Wire Seal, Cavity Hole Diameter 14.4mm
Part Number: 320455AA6
Product Specification
Previously cataloged under part number 13214627619.
A single wire seal that provides environmental protection at the cable entry point of an occupied connector cavity. Engineered to form a reliable seal around the wire, it helps prevent water and contaminant ingress while maintaining connector performance. Constructed from VMQ silicone, it fits a nominal cavity hole diameter of 14.4 mm and accepts cable insulation diameters from 4 mm to 4.3 mm.
Part Number: 320455AA6.
