TECHNICAL INFORMATION
Identification
- Product Category
- SEALS
- Part Number
- 320455A6U
- Legacy Part Number
- 14415627670
Other properties
- Seal type
- Single Wire Seal
- Nominal cavity hole diameter [mm]
- 6.7
- Cable diam min [mm]
- 1.9
- Cable diam max [mm]
- 3
Loading...

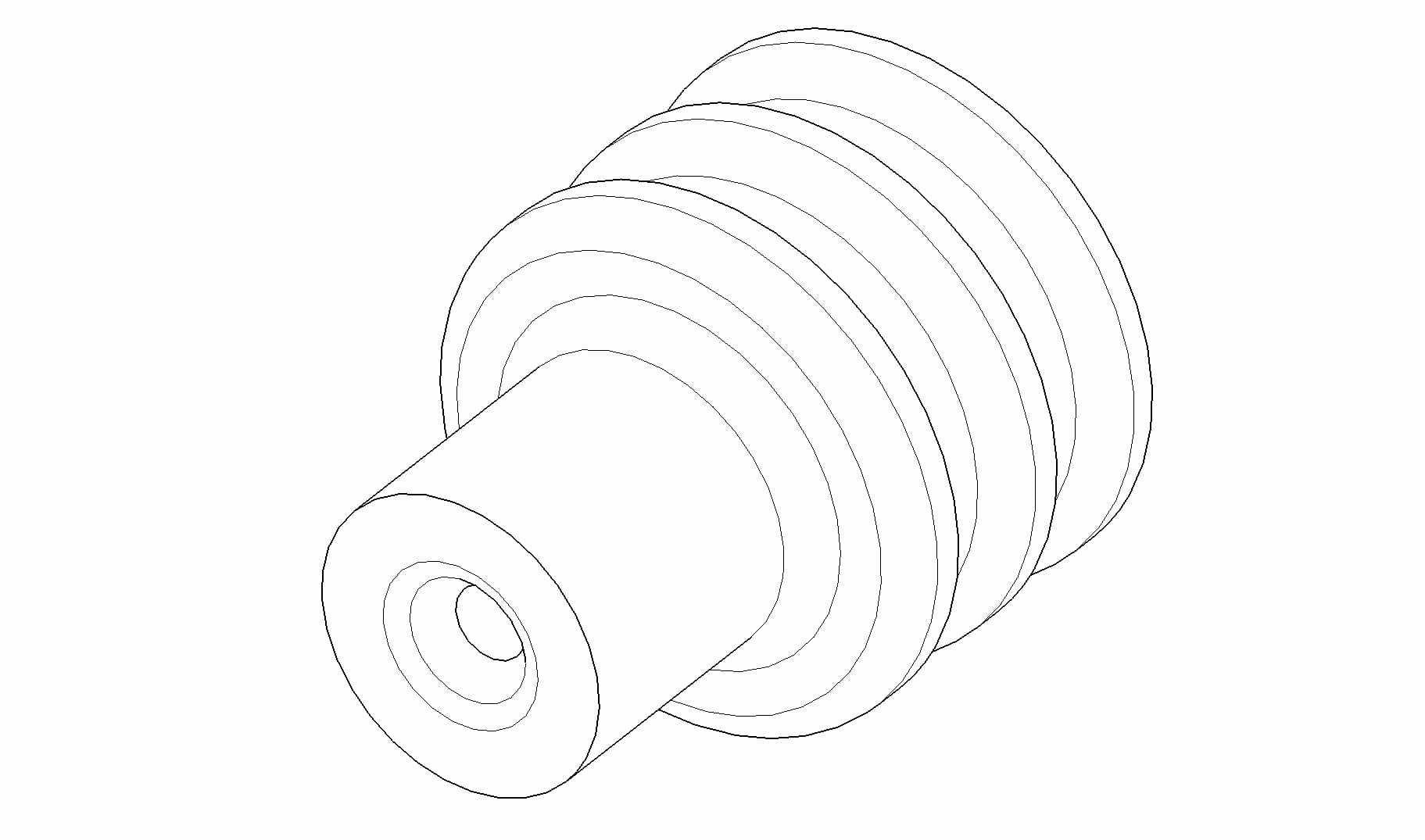

320455A6U - Single Wire Seal, Cavity Hole Diameter 6.7mm
Part Number: 320455A6U
Click to see 3D model
Product Specification
Previously cataloged under part number 14415627670.
A single wire seal that provides environmental protection at the cable entry point of an occupied connector cavity. Engineered to form a reliable seal around the wire, it helps prevent water and contaminant ingress while maintaining connector performance. Manufactured from VMQ silicone, it is designed to fit a connector cavity with a nominal hole diameter of 6.7 mm.
The seal accepts cable insulation diameters from 1.9 mm to 3 mm.
Part Number: 320455A6U.
