TECHNICAL INFORMATION
Identification
- Product Category
- SEALS
- Part Number
- 320455A6X
- Legacy Part Number
- 14740627694
Other properties
- Seal type
- Single Wire Seal
- Nominal cavity hole diameter [mm]
- 5.4
- Cable diam min [mm]
- 1.2
- Cable diam max [mm]
- 2.1
Loading...

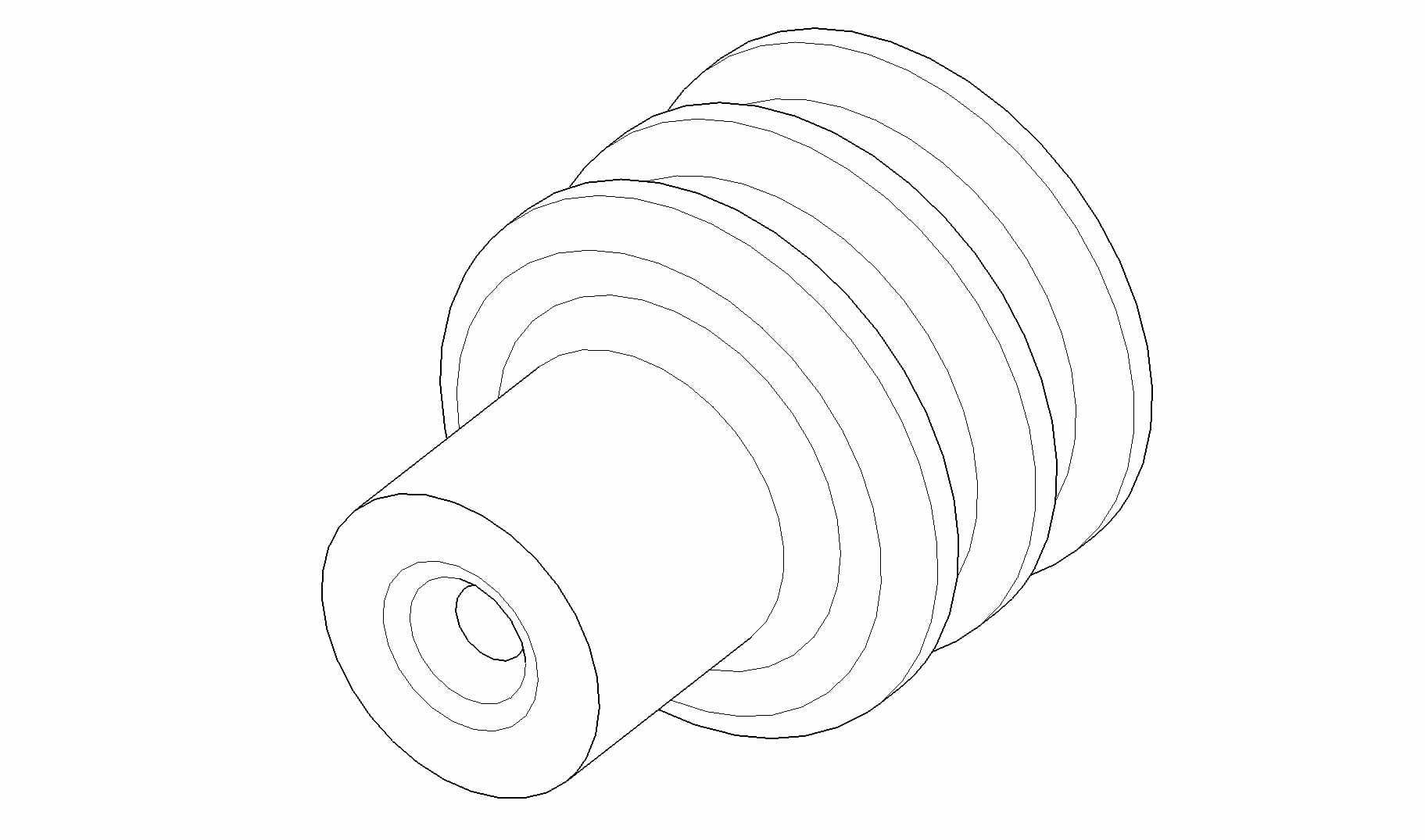

320455A6X - Single Wire Seal, Cavity Hole Diameter 5.4mm
Part Number: 320455A6X
Click to see 3D model
Product Specification
Previously cataloged under part number 14740627694.
A single wire seal that provides environmental protection at the cable entry point of an occupied connector cavity. Engineered to form a reliable seal around the wire, it helps prevent water and contaminant ingress while maintaining connector performance. Constructed from VMQ silicone, it is suited for applications requiring durable, flexible sealing across a range of operating conditions.
The seal is sized for a nominal connector cavity hole diameter of 5.4 mm and accepts cable insulation diameters from 1.2 mm to 2.1 mm.
Part Number: 320455A6X.
