TECHNICAL INFORMATION

Identification

Product Category
EYELETS
Part Number
E09283300
Legacy Part Number
100920-CZ02

Other properties

Connection Technology
Standard Crimp
Special feature for connection area
Serrated, Anti-rotation
No. of wire connections
3
Minimum Cable Cross section [mm²]
2
Maximum Cable Cross section [mm²]
5
Ring diameter inside [mm]
5.12
Core Material
CuZn
Plating Material
Sn

DOWNLOADS

2D Drawing

2D Drawing E09283300

DOWNLOAD

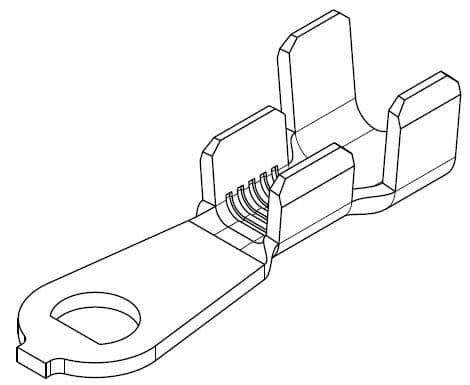

SERRATED RING TERMINAL ANTI-ROTATION

Part Number: E09283300

SERRATED RING TERMINAL ANTI-ROTATION

Product Specification

Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.

Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
