TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- E36477600
Other properties
- Connection Technology
- Standard Crimp
- Shape
- Bent
- Thread Diameter [mm]
- M8
- No. of wire connections
- 1
- Minimum Cable Cross section [mm²]
- 25
- Maximum Cable Cross section [mm²]
- 35
- Ring diameter inside [mm]
- 8.4
- Core Material
- Cu
- Plating Material
- Sn
- Max Temp (C)
- 125

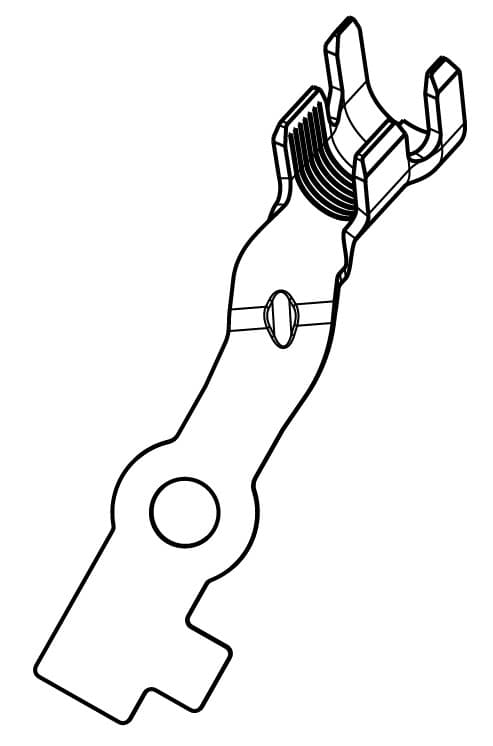

E36477600 - RING TERMINAL M8, ANTI-ROTATION
Part Number: E36477600
Product Specification
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
Part Number: E36477600.
