TECHNICAL INFORMATION

Identification

Product Category
EYELETS
Part Number
E04380900
Legacy Part Number
8814000001

Other properties

Connection Technology
Standard Crimp
Thread Diameter [mm]
M8
Special feature for connection area
Round Hole
No. of wire connections
1
Minimum Cable Cross section [mm²]
25
Maximum Cable Cross section [mm²]
35
Ring diameter inside [mm]
8.4
Core Material
CuZn
Plating Material
Sn

DOWNLOADS

2D Drawing

2D Drawing E04380900

DOWNLOAD

3D PDF

3D PDF E04380900

DOWNLOAD

3D Cad

3D Cad E04380900

DOWNLOAD

Loading...

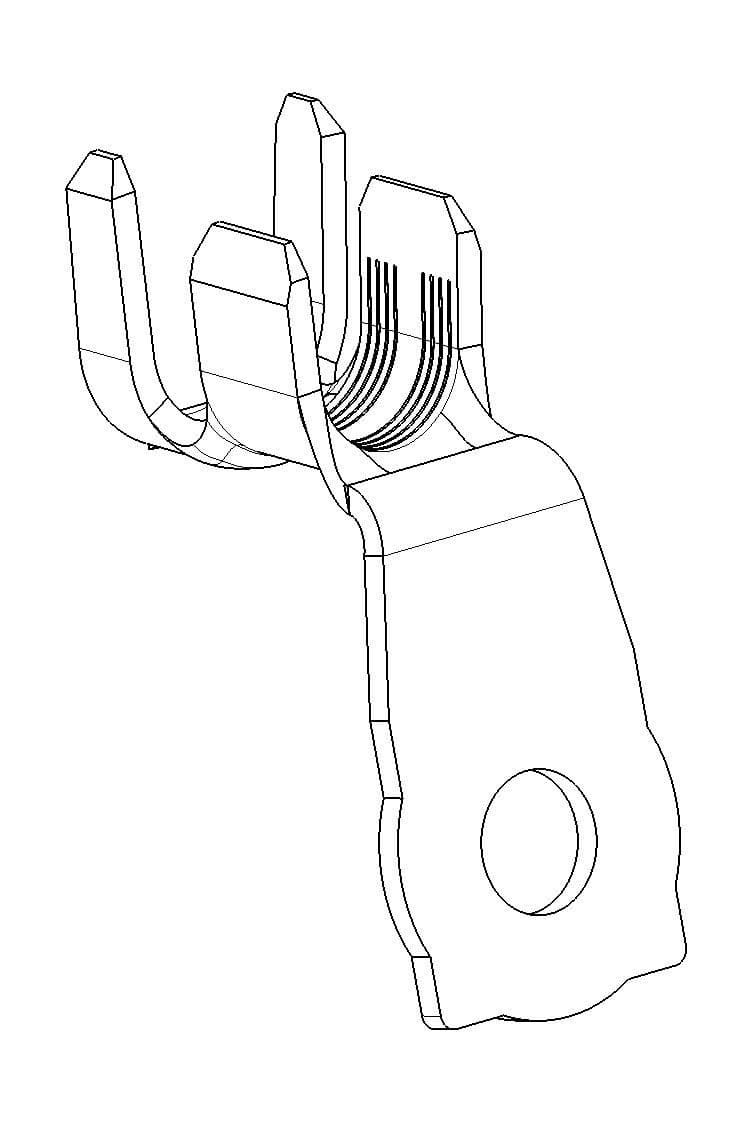

RING TERMINAL M8

Part Number: E04380900

Click to see 3D model

RING TERMINAL M8

Product Specification

Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.

Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
