TECHNICAL INFORMATION

Identification

Product Category
EYELETS
Part Number
320151F98
Legacy Part Number
25939212178

Other properties

Connection Technology
Standard Crimp
Thread Diameter [mm]
M8
Minimum Cable Cross section [mm²]
25
Maximum Cable Cross section [mm²]
35
Ring diameter inside [mm]
8.4
Core Material
CuSn
Plating Material
Sn

DOWNLOADS

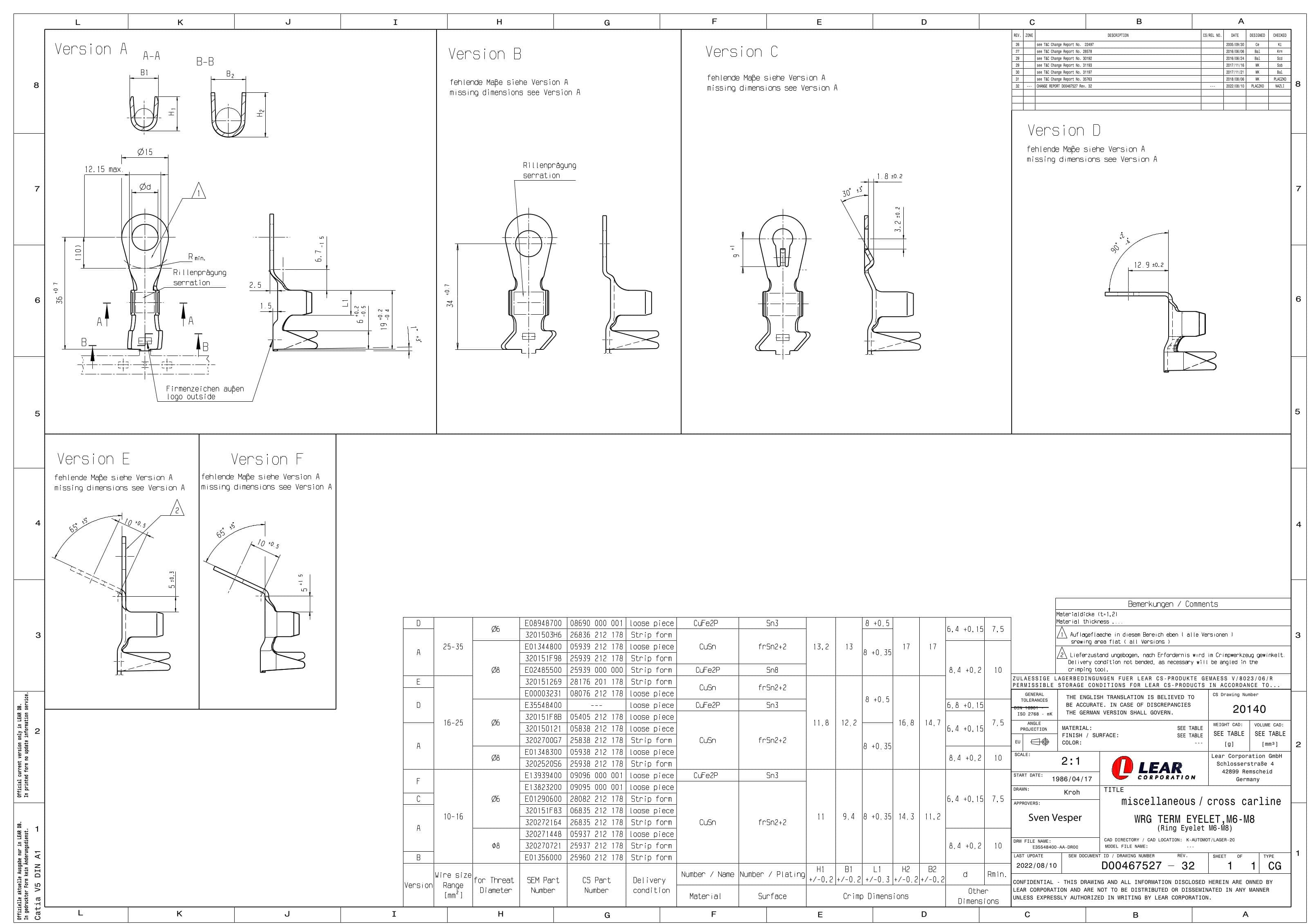

2D Drawing

2D Drawing 320151F98

DOWNLOAD

3D PDF

3D PDF 320151F98

DOWNLOAD

3D Cad

3D Cad 320151F98

DOWNLOAD

Loading...

320151F98 - RING TERMINAL M8

Part Number: 320151F98

Click to see 3D model

RING TERMINAL M8

Product Specification

Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.

Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.

Part Number: 320151F98.
