TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- 3201515V8
- Legacy Part Number
- 8146111111
Other properties
- Connection Technology
- Standard Crimp
- Thread Diameter [mm]
- M8
- Special feature for connection area
- Round Hole
- No. of wire connections
- 1
- Minimum Cable Cross section [mm²]
- 50
- Maximum Cable Cross section [mm²]
- 50
- Ring diameter inside [mm]
- 8.4
- Core Material
- CuZn
- Plating Material
- Sn
DOWNLOADS
Loading...

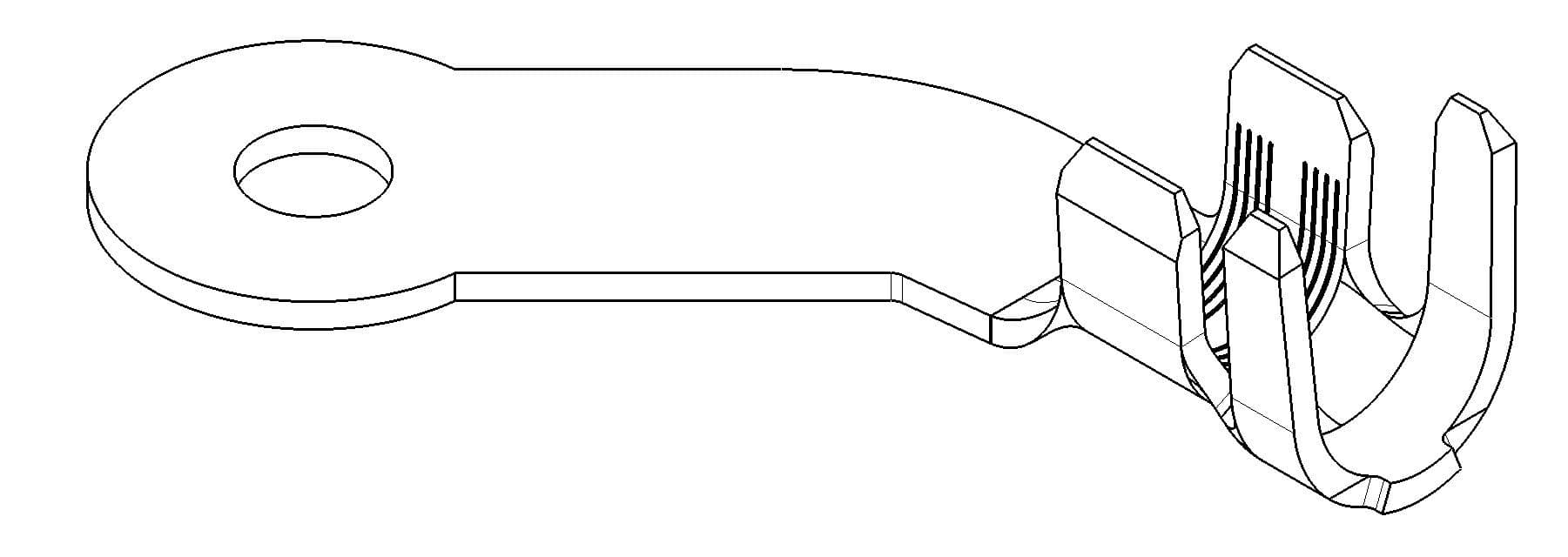

3201515V8 - RING TERMINAL M8
Part Number: 3201515V8
Click to see 3D model
Product Specification
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
Part Number: 3201515V8.
