TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- E05971100
Other properties
- Connection Technology
- Standard Crimp
- Thread Diameter [mm]
- M8
- Minimum Cable Cross section [mm²]
- 20.5
- Maximum Cable Cross section [mm²]
- 50
- Ring diameter inside [mm]
- 8.3
- Core Material
- CuZn
- Plating Material
- Not Plated
DOWNLOADS
Loading...
E05971100 - RING TERMINAL M8
Part Number: E05971100

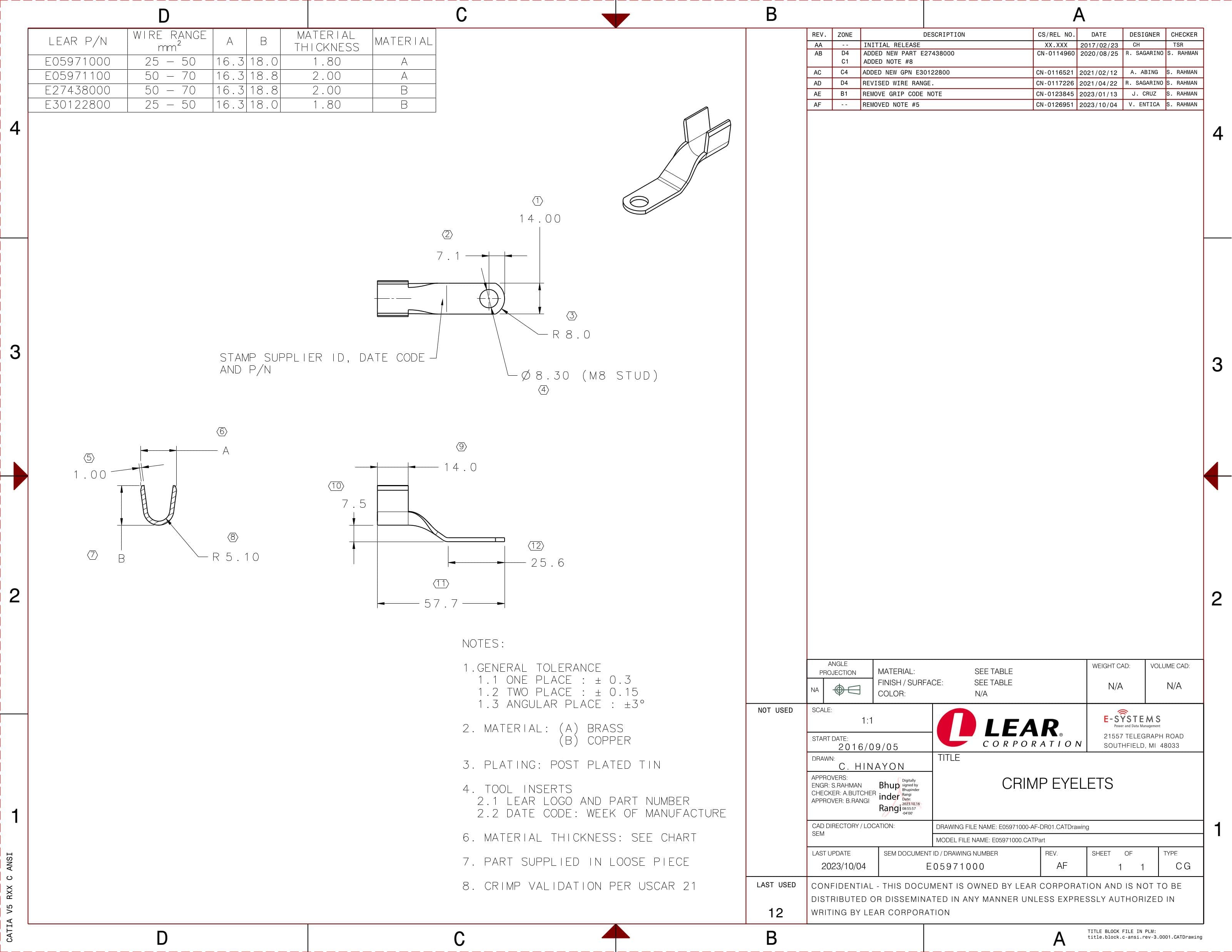

Click to see 3D model
Product Specification
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
Part Number: E05971100.
