TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- E08883300
- Legacy Part Number
- 110434-CF31
Other properties
- Connection Technology
- Standard Crimp
- Thread Diameter [mm]
- M8
- No. of wire connections
- 3
- Minimum Cable Cross section [mm²]
- 11.4
- Maximum Cable Cross section [mm²]
- 29.23
- Ring diameter inside [mm]
- 8.7
- Core Material
- Cu
- Plating Material
- Sn
DOWNLOADS
Loading...

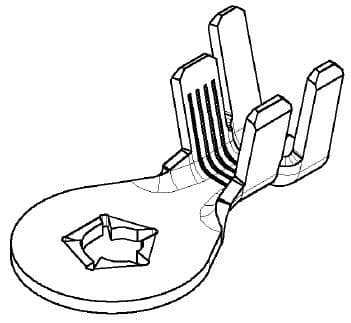

RING TERMINAL M8
Part Number: E08883300
Click to see 3D model
Product Specification
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
