TECHNICAL INFORMATION

Identification

Product Category
EYELETS
Part Number
E11757000

Other properties

Connection Technology
Standard Crimp
Thread Diameter [mm]
M8
No. of wire connections
2
Minimum Cable Cross section [mm²]
3
Maximum Cable Cross section [mm²]
8
Ring diameter inside [mm]
9
Core Material
Cu
Plating Material
Sn

DOWNLOADS

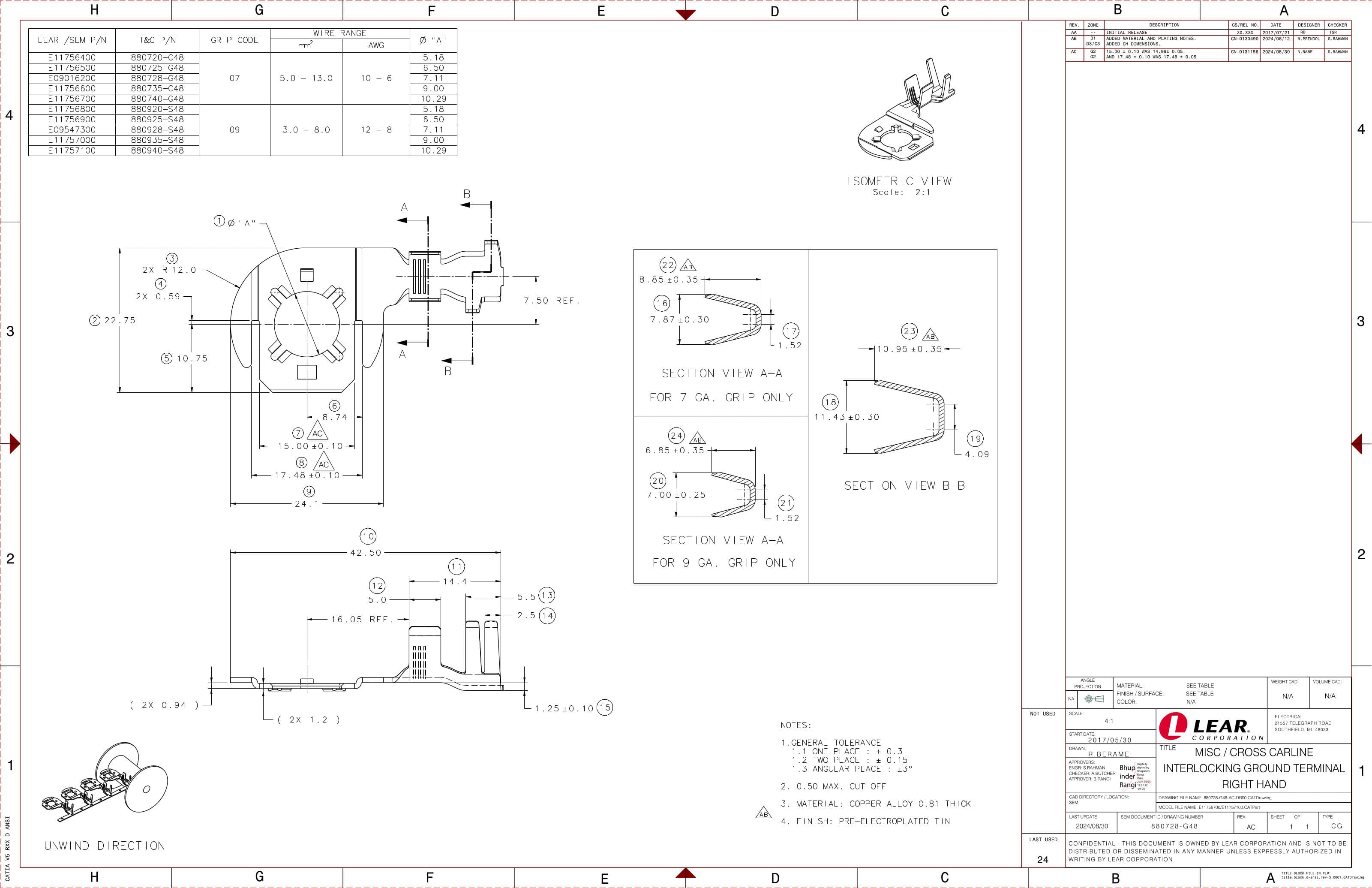

2D Drawing

2D Drawing E11757000

DOWNLOAD

3D PDF

3D PDF E11757000

DOWNLOAD

3D Cad

3D Cad E11757000

DOWNLOAD

Loading...

E11757000 - RING TERMINAL M8

Part Number: E11757000

Click to see 3D model

RING TERMINAL M8

Product Specification

Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.

Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.

Part Number: E11757000.
