TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- E15327400
- Legacy Part Number
- 881028Y4805B
Other properties
- Connection Technology
- Standard Crimp
- Shape
- Straight
- Thread Diameter [mm]
- M6
- No. of wire connections
- 1
- Minimum Cable Cross section [mm²]
- 3.5
- Maximum Cable Cross section [mm²]
- 5
- Ring diameter inside [mm]
- 7.1
- Core Material
- Cu
- Plating Material
- Sn
- Max Temp (C)
- 125

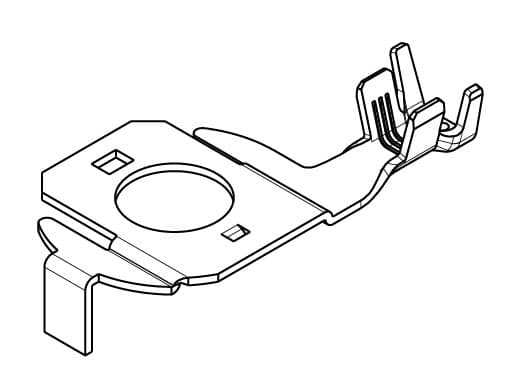

E15327400 - RING TERMINAL M6, ANTI-ROTATION
Part Number: E15327400
Product Specification
Previously cataloged under part number 881028Y4805B.
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
Part Number: E15327400.
