TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- 320257HT5
- Legacy Part Number
- 881828-C48
Other properties
- Connection Technology
- Standard Crimp
- Shape
- Straight
- Thread Diameter [mm]
- M6
- Special feature for connection area
- Round Hole
- No. of wire connections
- 1
- Minimum Cable Cross section [mm²]
- 0.39
- Maximum Cable Cross section [mm²]
- 0.85
- Ring diameter inside [mm]
- 7.11
- Core Material
- CuFe
- Plating Material
- Sn
- Max Temp (C)
- 125

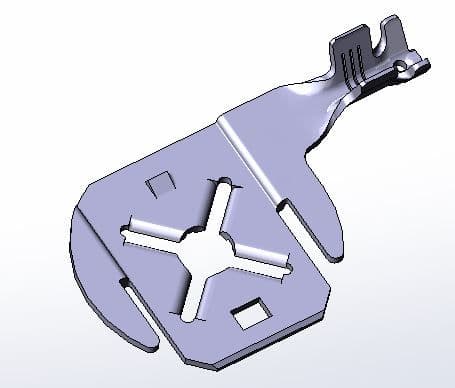

320257HT5 - RING TERMINAL M6
Part Number: 320257HT5
Product Specification
Previously cataloged under part number 881828-C48.
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
Part Number: 320257HT5.
