TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- E07970600
- Legacy Part Number
- 9040000001
Other properties
- Connection Technology
- Standard Crimp
- Shape
- Straight
- Thread Diameter [mm]
- M6
- No. of wire connections
- 1
- Minimum Cable Cross section [mm²]
- 1.5
- Maximum Cable Cross section [mm²]
- 2.5
- Ring diameter inside [mm]
- 7.5
- Core Material
- CuFe
- Plating Material
- Sn
- Max Temp (C)
- 125

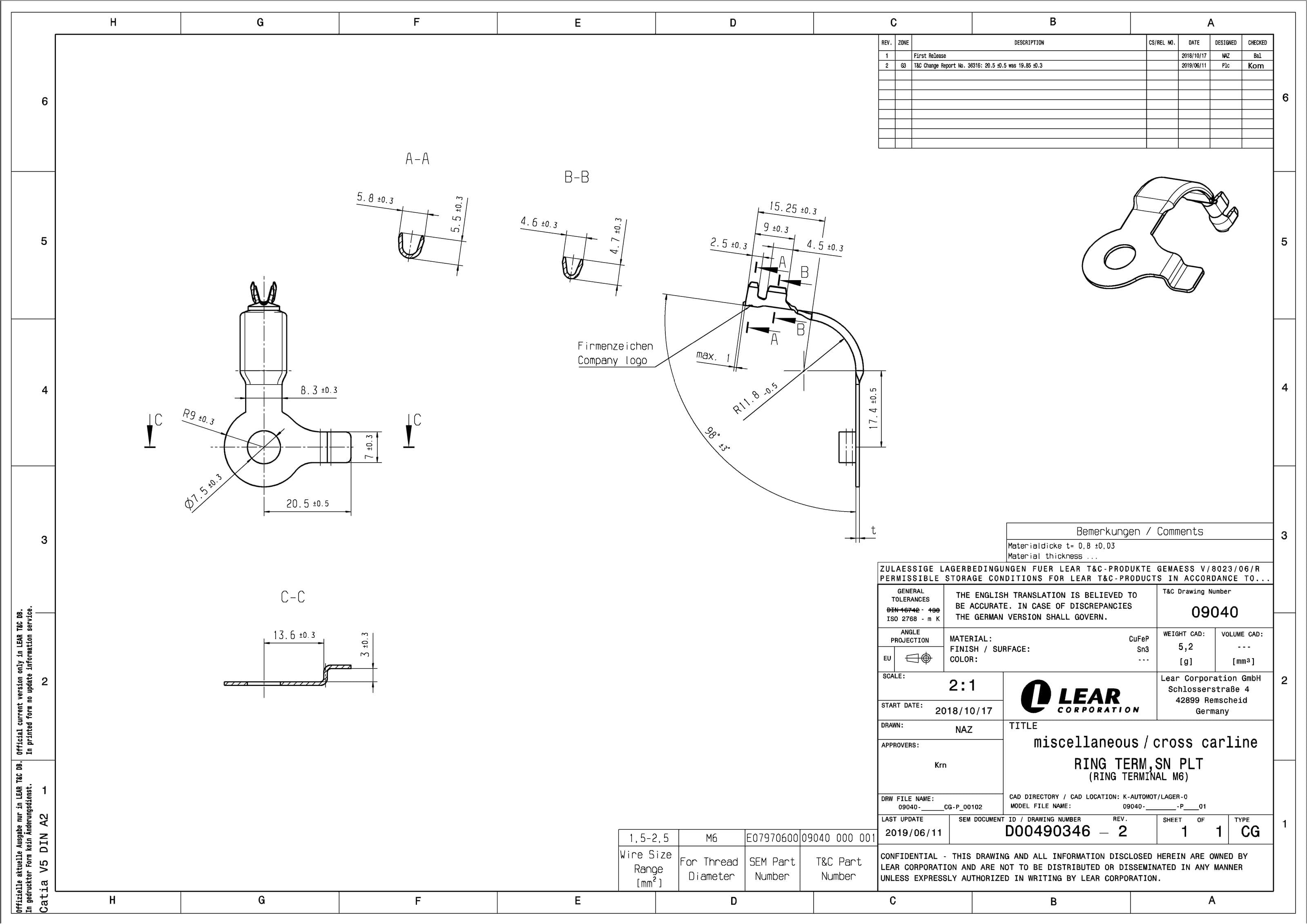

2D Drawing
2D Drawing E07970600

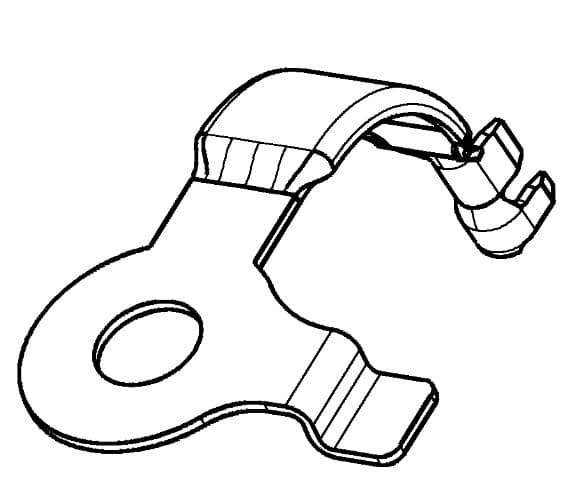

E07970600 - RING TERMINAL M6
Part Number: E07970600
Product Specification
Previously cataloged under part number 9040000001.
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
Part Number: E07970600.
