TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- 320151F8B
- Legacy Part Number
- 05405212178
Other properties
- Connection Technology
- Standard Crimp
- Shape
- Straight
- Thread Diameter [mm]
- M6
- No. of wire connections
- 1
- Minimum Cable Cross section [mm²]
- 16
- Maximum Cable Cross section [mm²]
- 25
- Ring diameter inside [mm]
- 6.4
- Core Material
- CuSn
- Plating Material
- Sn

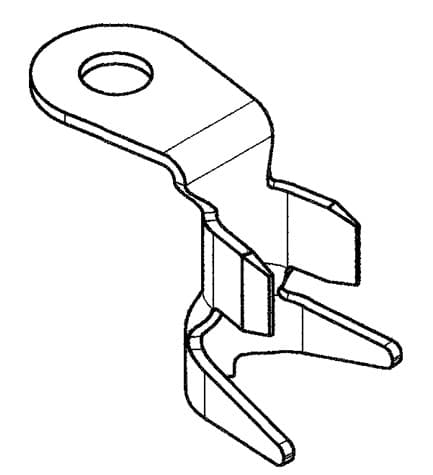

2D Drawing
2D Drawing 320151F8B
320151F8B - RING TERMINAL M6
Part Number: 320151F8B
Product Specification
Previously cataloged under part number 05405212178.
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
Part Number: 320151F8B.
