TECHNICAL INFORMATION

Identification

Product Category
EYELETS
Part Number
3201507H2
Legacy Part Number
28291201179

Other properties

Connection Technology
Standard Crimp
Shape
Straight
Thread Diameter [mm]
M6
No. of wire connections
1
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
Ring diameter inside [mm]
6.4
Core Material
CuSn
Plating Material
Sn

DOWNLOADS

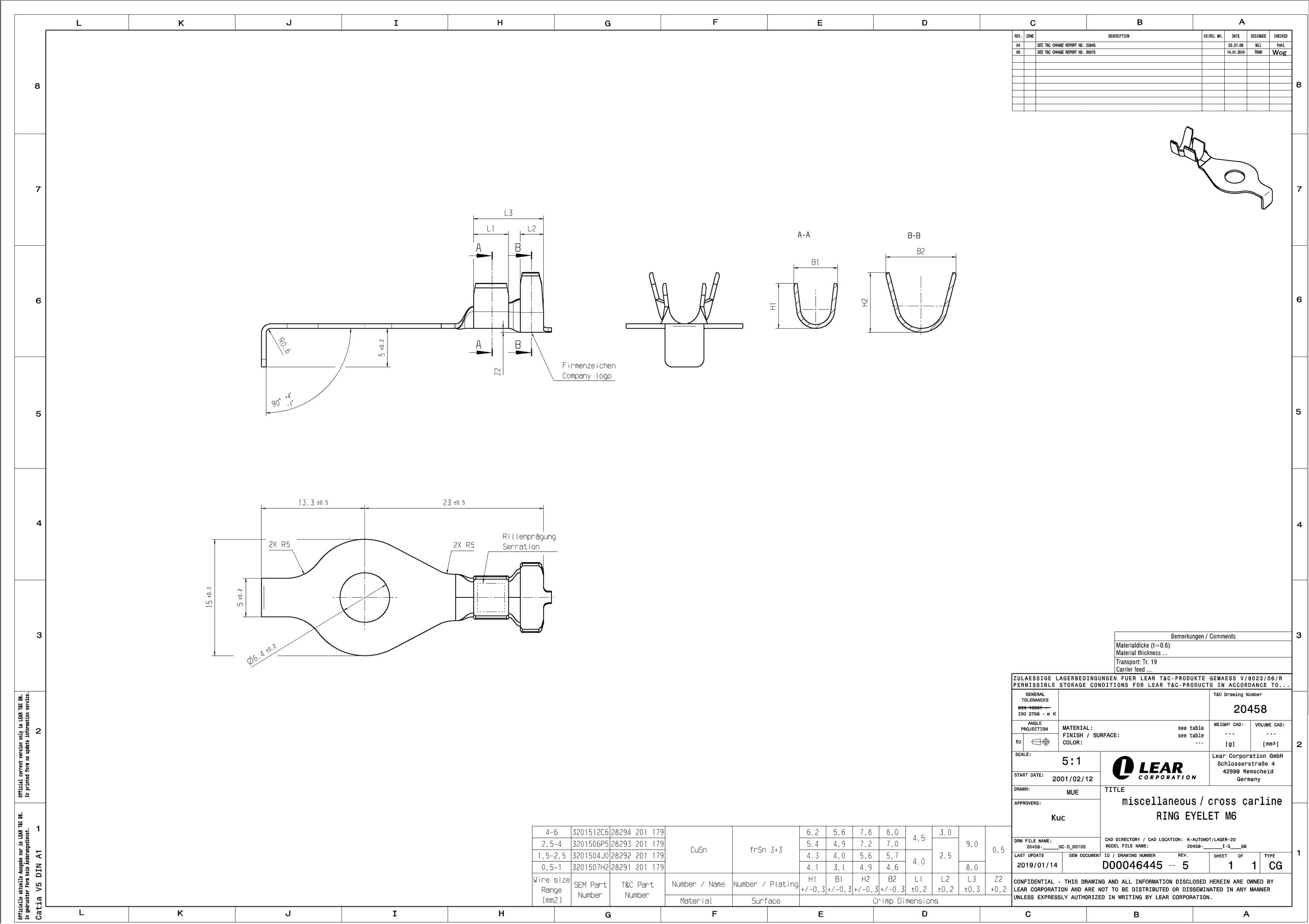

2D Drawing

2D Drawing 3201507H2

DOWNLOAD

3D PDF

3D PDF 3201507H2

DOWNLOAD

3D Cad

3D Cad 3201507H2

DOWNLOAD

Loading...

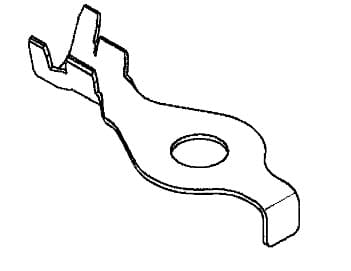

RING TERMINAL M6

Part Number: 3201507H2

Click to see 3D model

RING TERMINAL M6

Product Specification

Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.

Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
