TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- 3201504J0
- Legacy Part Number
- 28292201179
Other properties
- Connection Technology
- Standard Crimp
- Thread Diameter [mm]
- M6
- No. of wire connections
- 1
- Minimum Cable Cross section [mm²]
- 1.5
- Maximum Cable Cross section [mm²]
- 2.5
- Ring diameter inside [mm]
- 6.4
- Core Material
- CuSn
- Plating Material
- Sn
DOWNLOADS
Loading...

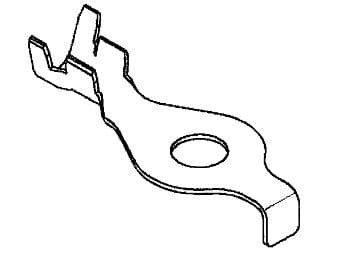

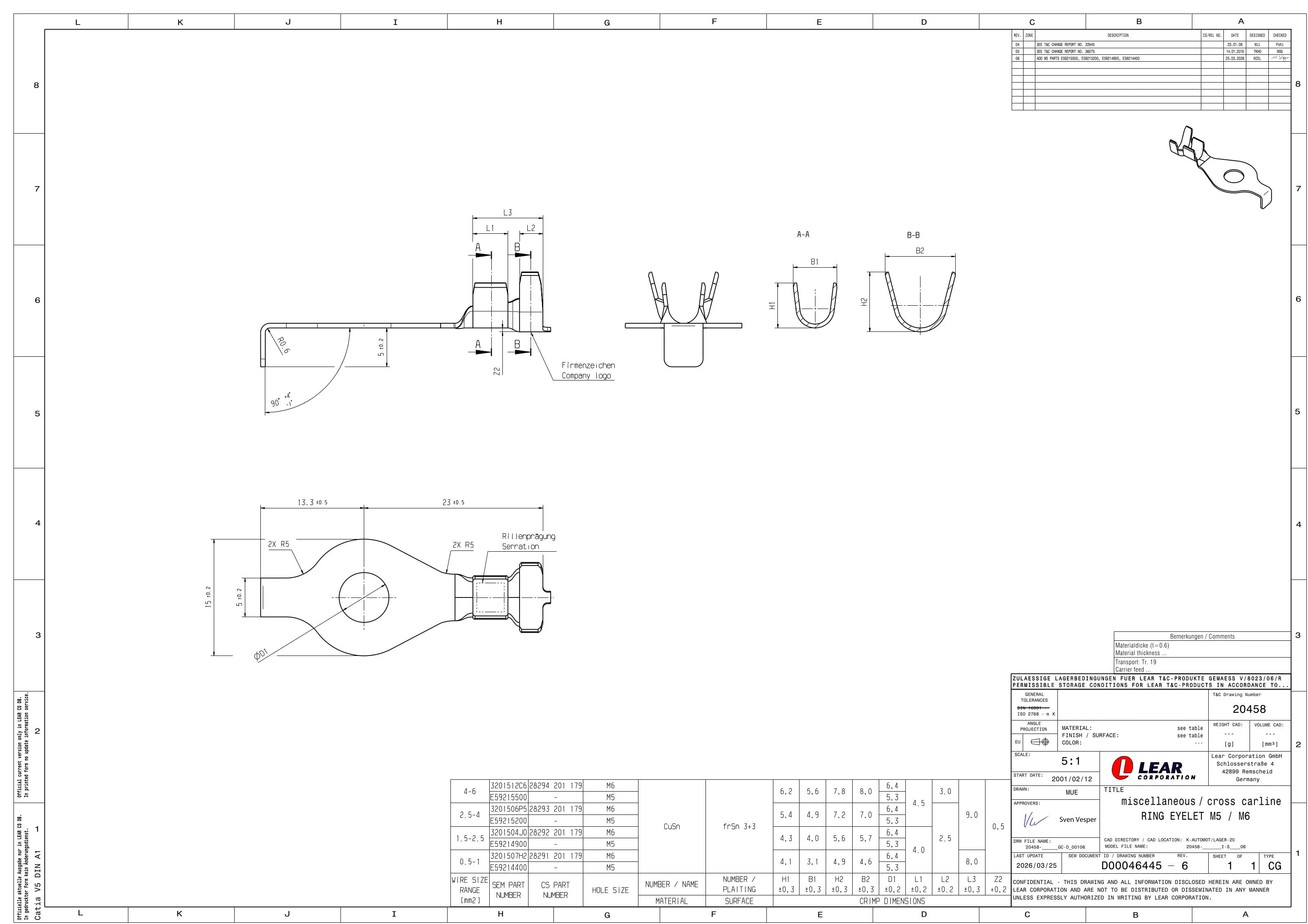

3201504J0 - RING TERMINAL M6
Part Number: 3201504J0
Click to see 3D model
Product Specification
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
Part Number: 3201504J0.
