TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- E05691600
- Legacy Part Number
- 25245212320
Other properties
- Connection Technology
- Standard Crimp
- Thread Diameter [mm]
- M6
- Special feature for connection area
- Round Hole
- No. of wire connections
- 3
- Minimum Cable Cross section [mm²]
- 6
- Maximum Cable Cross section [mm²]
- 12
- Ring diameter inside [mm]
- 6.5
- Core Material
- CuSn
- Plating Material
- Not Plated
Standard Crimp Ring Terminal, M5, 6-12mm²
3201514U2
Product Category:
EYELETSLegacy Part Number:
25243212004Core Material
CuSn
Plating Material
Not Plated
Thread Diameter [mm]
M5
Standard Crimp Ring Terminal, M6, 6-12mm²
320270515
Product Category:
EYELETSLegacy Part Number:
25245212004Core Material
CuSn
Plating Material
Not Plated
Thread Diameter [mm]
M6
Standard Crimp Ring Terminal, M6, 6-12mm²
3201501P0
Product Category:
EYELETSLegacy Part Number:
25245212179Core Material
CuSn
Plating Material
Sn
Thread Diameter [mm]
M6
Standard Crimp Ring Terminal, M6, 6-12mm²
320290463
Product Category:
EYELETSLegacy Part Number:
25245212011Core Material
CuSn
Plating Material
Sn
Thread Diameter [mm]
M6
Standard Crimp Ring Terminal, M6, 6-12mm²
3201507V8
Product Category:
EYELETSLegacy Part Number:
25245123014Core Material
CuZn
Plating Material
Sn
Thread Diameter [mm]
M6
Loading...

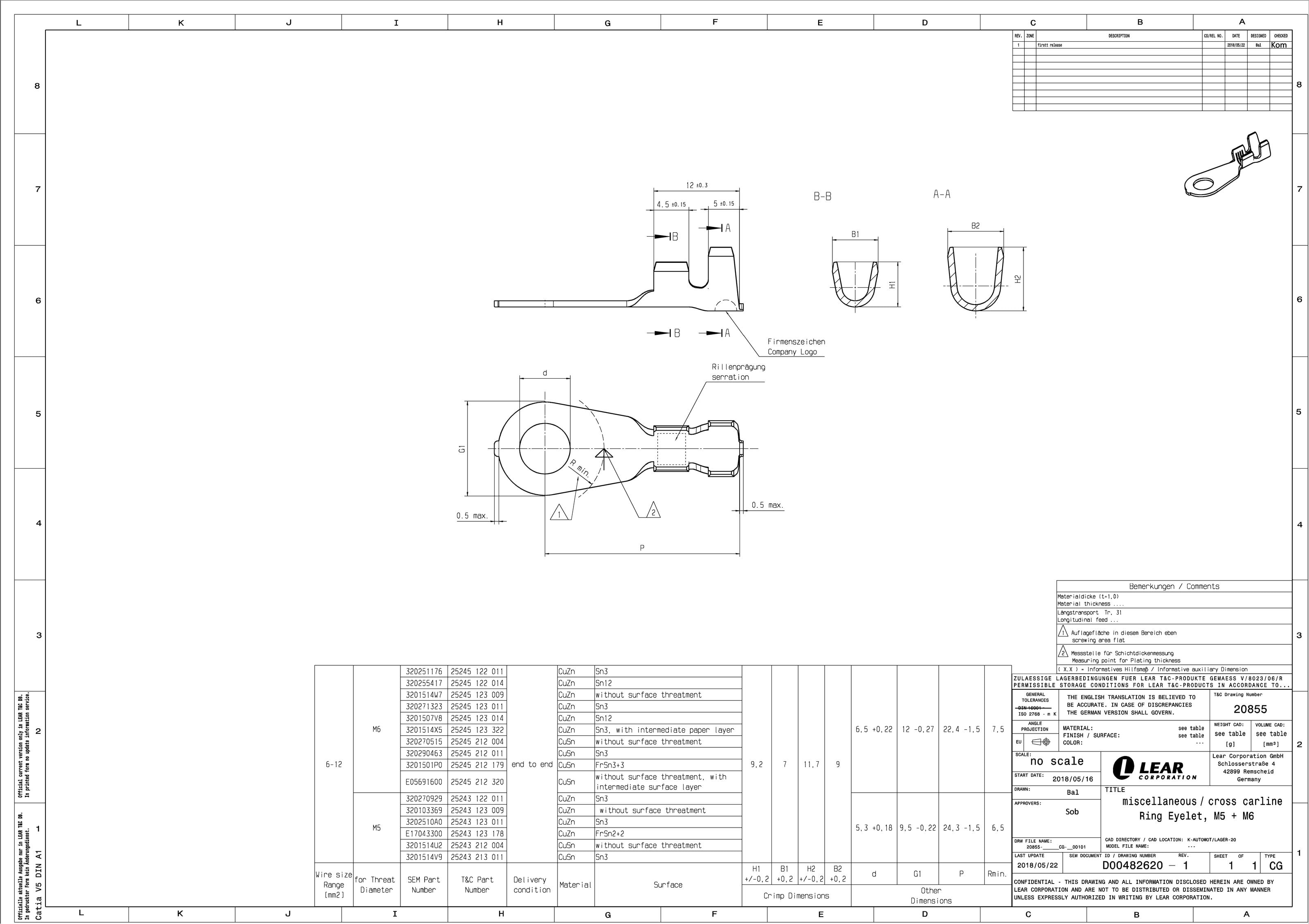

E05691600 - Standard Crimp Ring Terminal, M6, 6-12mm²
Part Number: E05691600
Click to see 3D model
Product Specification
Previously cataloged under part number 25245212320.
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
Part Number: E05691600.
Lear Connection Systems is offering other variants of this product:
