TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- 320150FR1
Other properties
- Connection Technology
- Standard Crimp
- Thread Diameter [mm]
- M6
- No. of wire connections
- 2
- Minimum Cable Cross section [mm²]
- 2.5
- Maximum Cable Cross section [mm²]
- 6
- Ring diameter inside [mm]
- 7.11
- Core Material
- CuZn
- Plating Material
- Sn
DOWNLOADS
Loading...

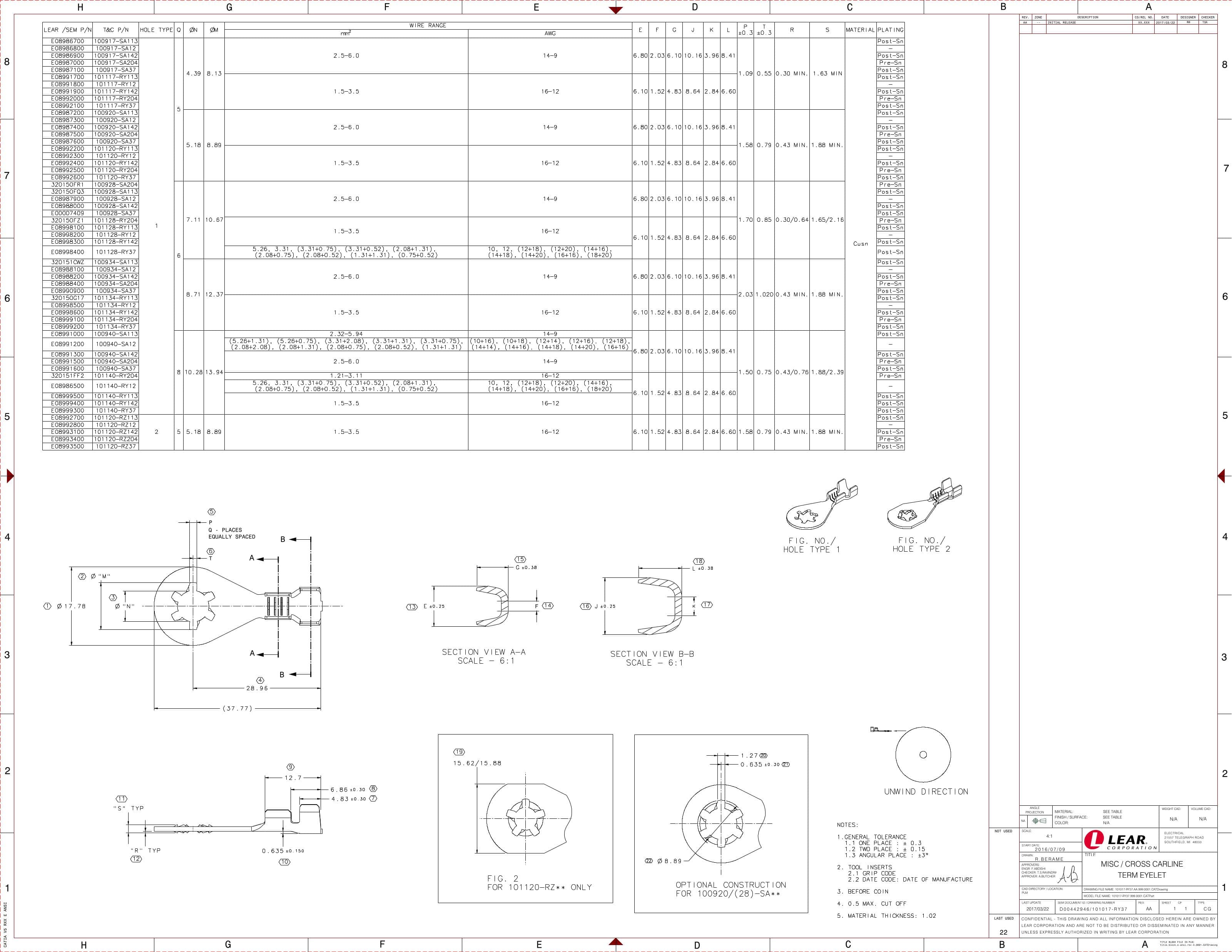

320150FR1 - RING TERMINAL M6
Part Number: 320150FR1
Click to see 3D model
Product Specification
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
Part Number: 320150FR1.
