TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- E09234500
- Legacy Part Number
- 101628-CC12
Other properties
- Connection Technology
- Standard Crimp
- Thread Diameter [mm]
- M6
- No. of wire connections
- 1
- Minimum Cable Cross section [mm²]
- 0.41
- Maximum Cable Cross section [mm²]
- 1.04
- Ring diameter inside [mm]
- 7.11
- Core Material
- CuZn
- Plating Material
- Not Plated
- RoHS
- YES

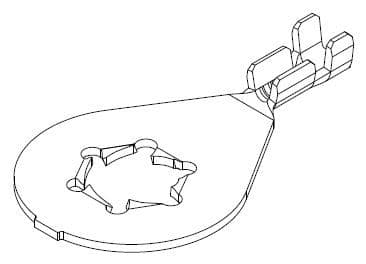

E09234500 - RING TERMINAL M6
Part Number: E09234500
Product Specification
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
Part Number: E09234500, compatible with: 101628CC12.
