TECHNICAL INFORMATION

Identification

Product Category
EYELETS
Part Number
E09848700

Other properties

Connection Technology
Standard Crimp
Thread Diameter [mm]
M5
Special feature for connection area
Round Hole
No. of wire connections
1
Minimum Cable Cross section [mm²]
8.5
Maximum Cable Cross section [mm²]
13.5
Ring diameter inside [mm]
5.5
Core Material
CuZn
Plating Material
Sn

DOWNLOADS

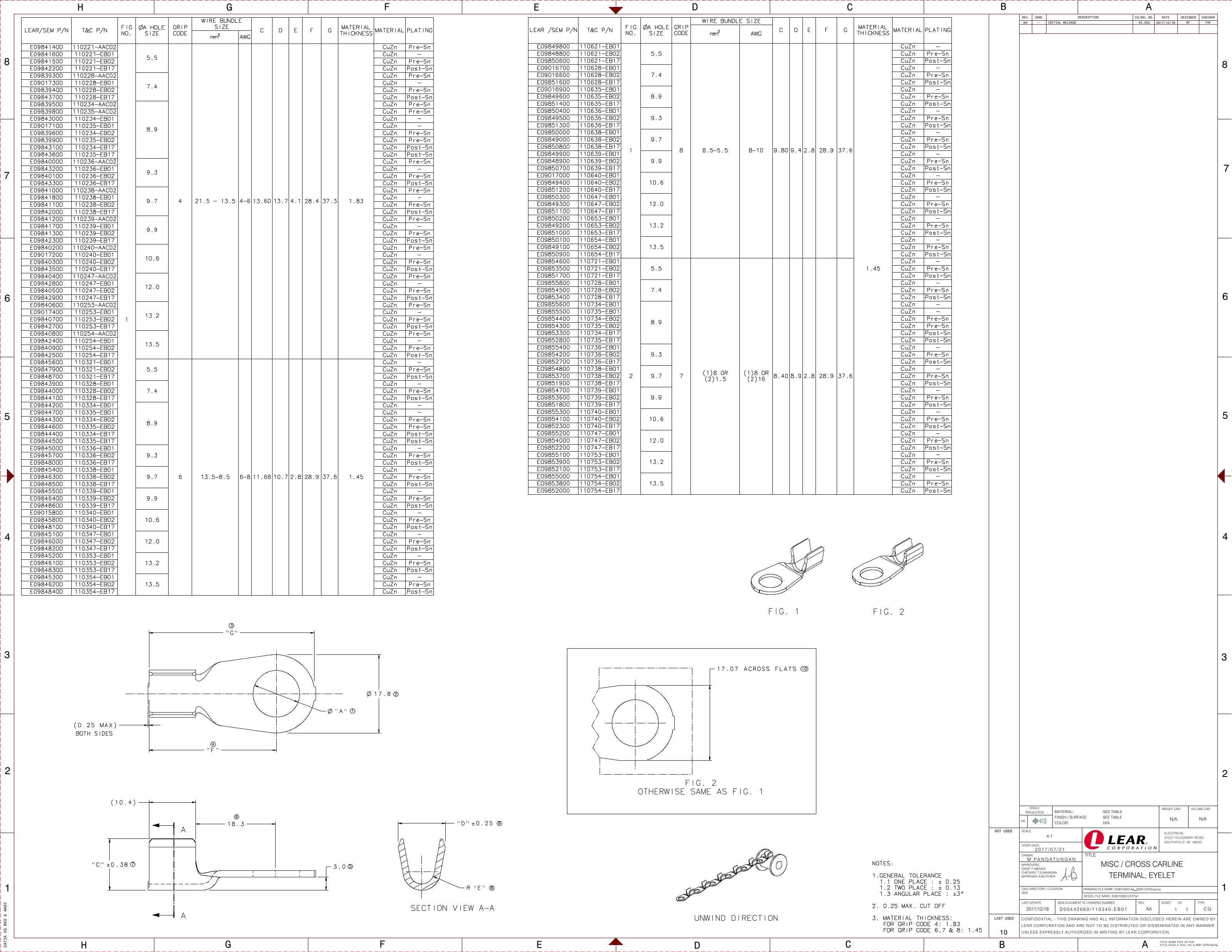

2D Drawing

2D Drawing E09848700

DOWNLOAD

3D PDF

3D PDF E09848700

DOWNLOAD

3D Cad

3D Cad E09848700

DOWNLOAD

Loading...

RING TERMINAL M5

Part Number: E09848700

Click to see 3D model

RING TERMINAL M5

Product Specification

Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.

Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
