TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- E11416200
- Legacy Part Number
- 110620-AJ02
Other properties
- Connection Technology
- Standard Crimp
- Thread Diameter [mm]
- M5
- No. of wire connections
- 2
- Minimum Cable Cross section [mm²]
- 13
- Maximum Cable Cross section [mm²]
- 13
- Ring diameter inside [mm]
- 5.2
- Core Material
- CuZn
- Plating Material
- Sn
- RoHS
- YES
DOWNLOADS
Loading...

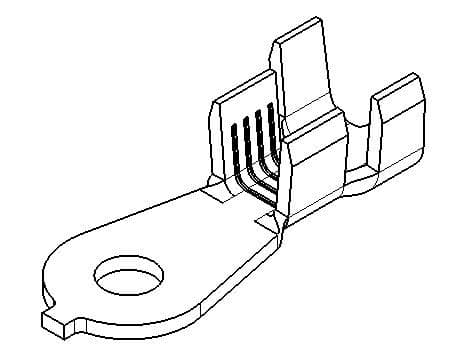

E11416200 - RING TERMINAL M5
Part Number: E11416200
Click to see 3D model
Product Specification
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
Part Number: E11416200, compatible with: 110620AJ02.
