TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- E08786400
- Legacy Part Number
- 100917-E01
Other properties
- Connection Technology
- Standard Crimp
- Thread Diameter [mm]
- M4
- Special feature for connection area
- Round Hole, Serrated
- No. of wire connections
- 3
- Minimum Cable Cross section [mm²]
- 2
- Maximum Cable Cross section [mm²]
- 5
- Ring diameter inside [mm]
- 4.39
- Core Material
- CuZn
- Plating Material
- Not Plated
DOWNLOADS

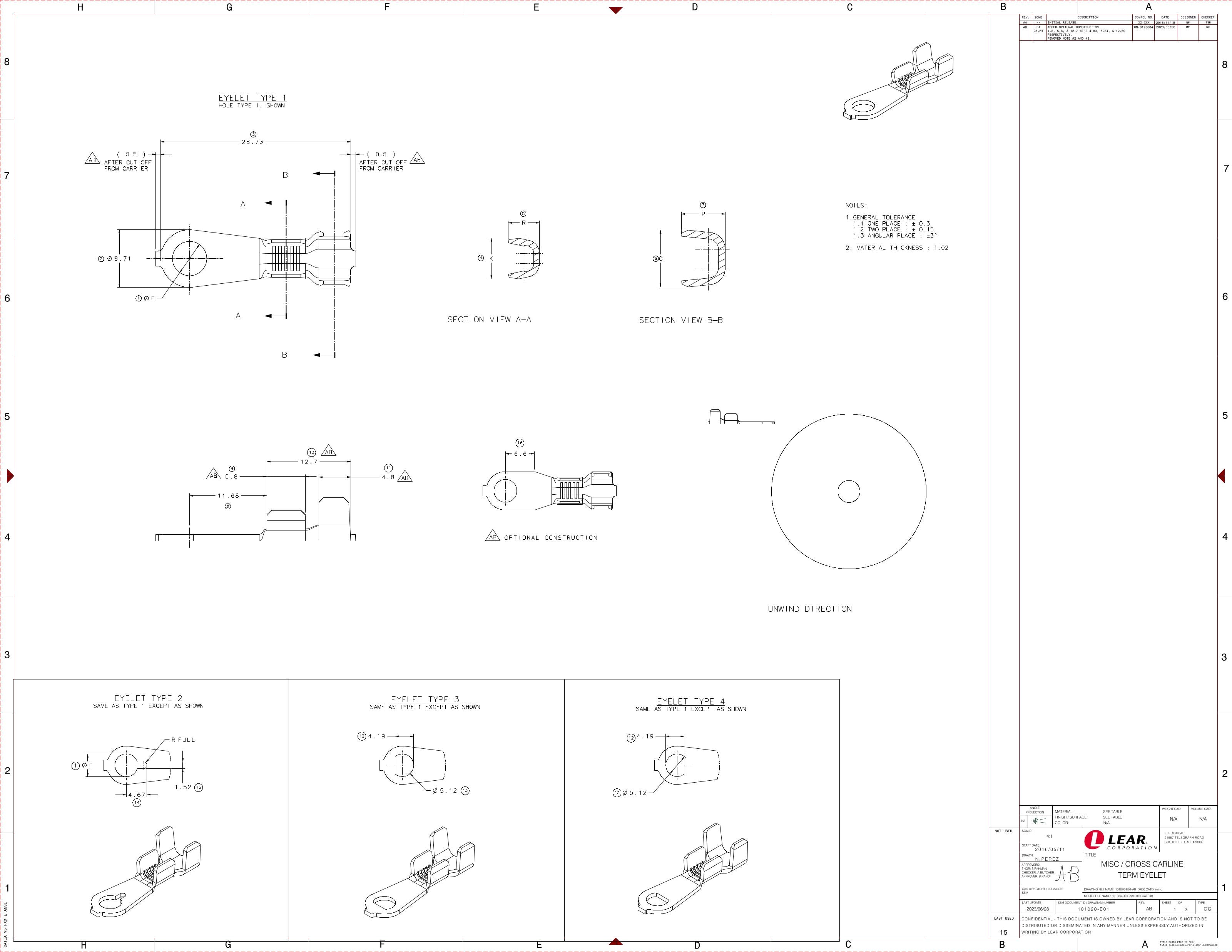

2D Drawing
2D Drawing E08786400
