TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- E09045700
- Legacy Part Number
- 101620-D02
Other properties
- Connection Technology
- Standard Crimp
- Thread Diameter [mm]
- M4
- No. of wire connections
- 1
- Minimum Cable Cross section [mm²]
- 0.75
- Maximum Cable Cross section [mm²]
- 1.5
- Ring diameter inside [mm]
- 5
- Core Material
- CuZn
- Plating Material
- Sn
- RoHS
- YES
Loading...

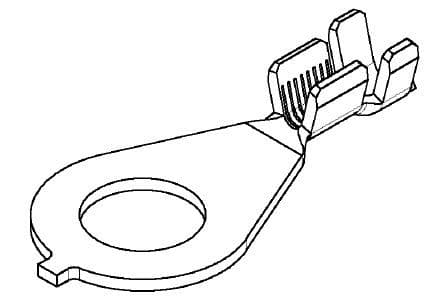

E09045700 - RING TERMINAL M4
Part Number: E09045700
Click to see 3D model
Product Specification
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
Part Number: E09045700, compatible with: 101620D02.
