TECHNICAL INFORMATION

Identification

Product Category
EYELETS
Part Number
E09022400

Other properties

Connection Technology
Standard Crimp
Thread Diameter [mm]
M2
No. of wire connections
2
Minimum Cable Cross section [mm²]
1
Maximum Cable Cross section [mm²]
2.5
Ring diameter inside [mm]
2.35
Core Material
CuZn
Plating Material
Not Plated
RoHS
YES

DOWNLOADS

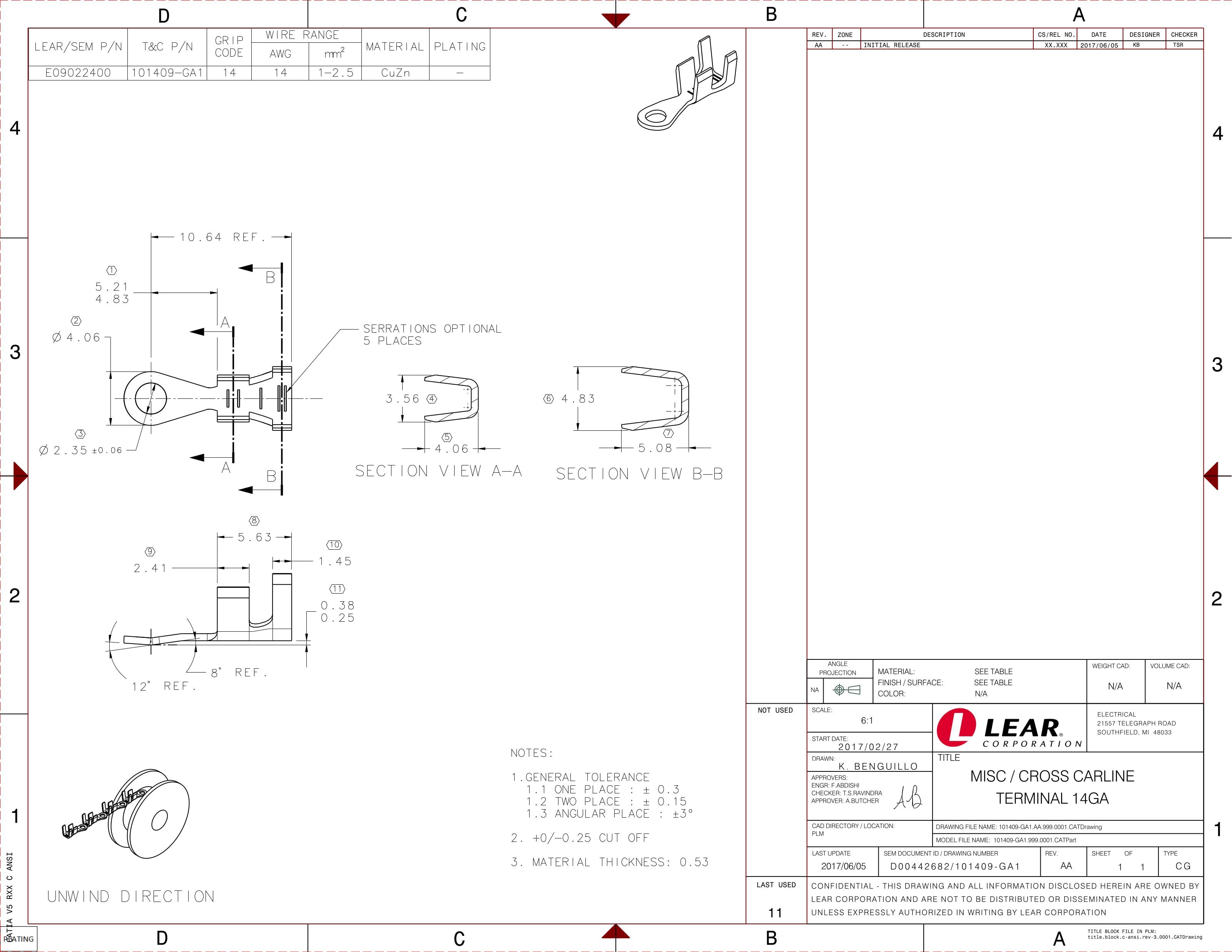

2D Drawing

2D Drawing E09022400

DOWNLOAD

3D PDF

3D PDF E09022400

DOWNLOAD

3D Cad

3D Cad E09022400

DOWNLOAD

Loading...

E09022400 - RING TERMINAL M2

Part Number: E09022400

Click to see 3D model

RING TERMINAL M2

Product Specification

Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.

Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.

Part Number: E09022400.
