TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- E09020200
- Legacy Part Number
- 101853-PC37
Other properties
- Connection Technology
- Standard Crimp
- Thread Diameter [mm]
- M12
- No. of wire connections
- 1
- Minimum Cable Cross section [mm²]
- 0.5
- Maximum Cable Cross section [mm²]
- 1
- Ring diameter inside [mm]
- 13.55
- Core Material
- CuZn
- Plating Material
- Sn
- Remarks
- Post plated
- RoHS
- YES
DOWNLOADS
Loading...

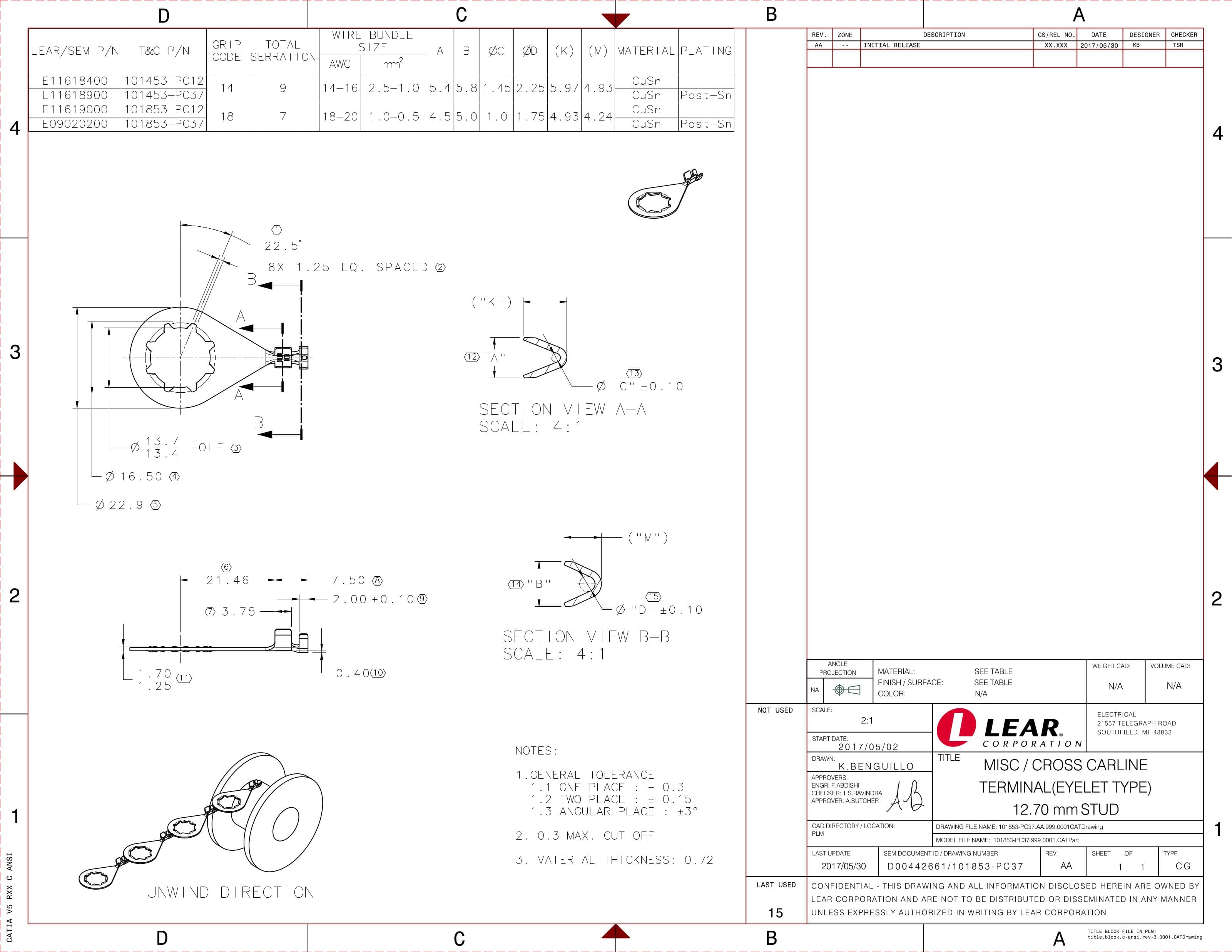

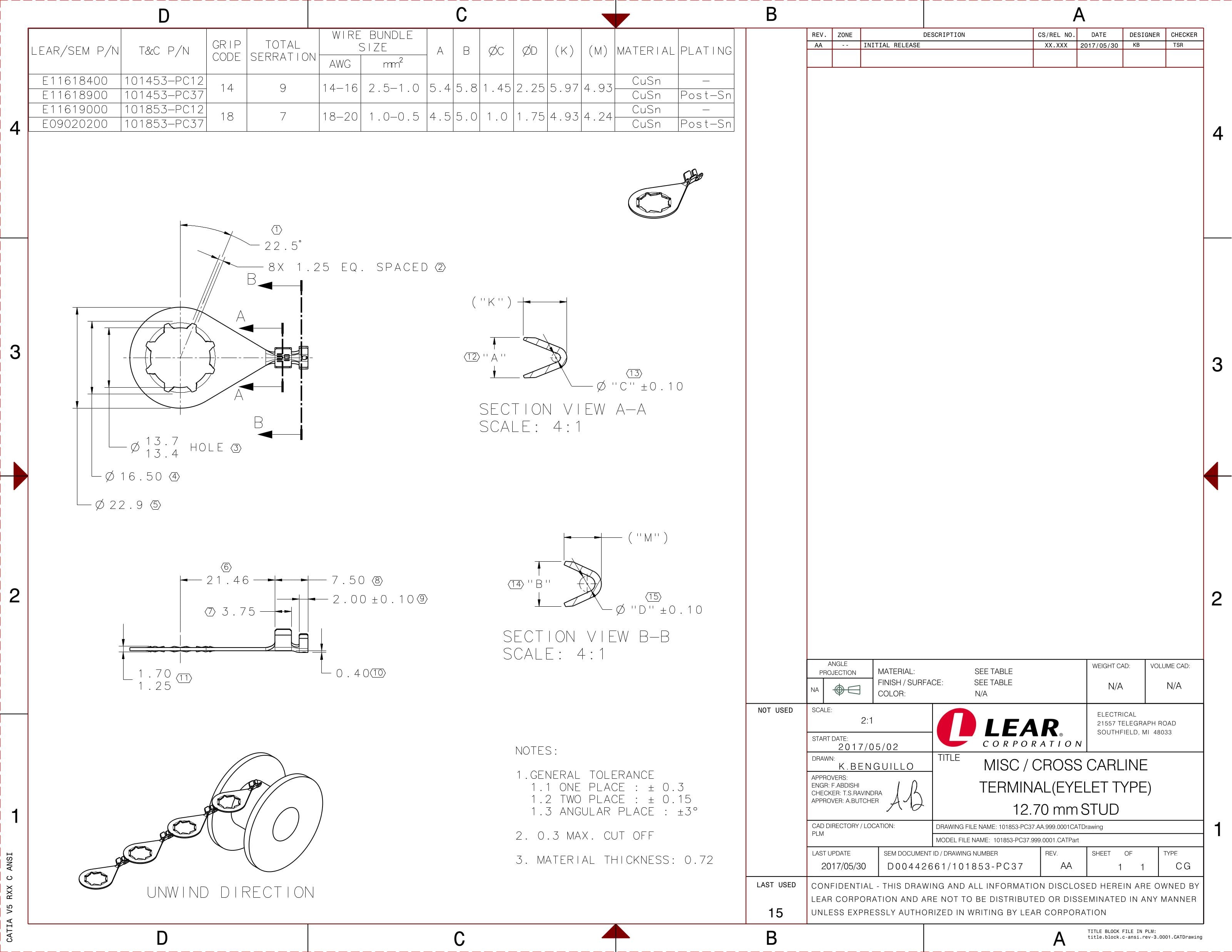

E09020200 - RING TERMINAL M12
Part Number: E09020200
Click to see 3D model
Product Specification
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
Part Number: E09020200, compatible with: 101853PC37.
