TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- 320151475
- Legacy Part Number
- 25223213009
Other properties
- Connection Technology
- Standard Crimp
- Thread Diameter [mm]
- M10
- Special feature for connection area
- Round Hole
- No. of wire connections
- 2
- Minimum Cable Cross section [mm²]
- 1.5
- Maximum Cable Cross section [mm²]
- 2.5
- Ring diameter inside [mm]
- 10.5
- Core Material
- CuSn
- Plating Material
- Not Plated
DOWNLOADS
Loading...
320151475 - RING TERMINAL M10
Part Number: 320151475

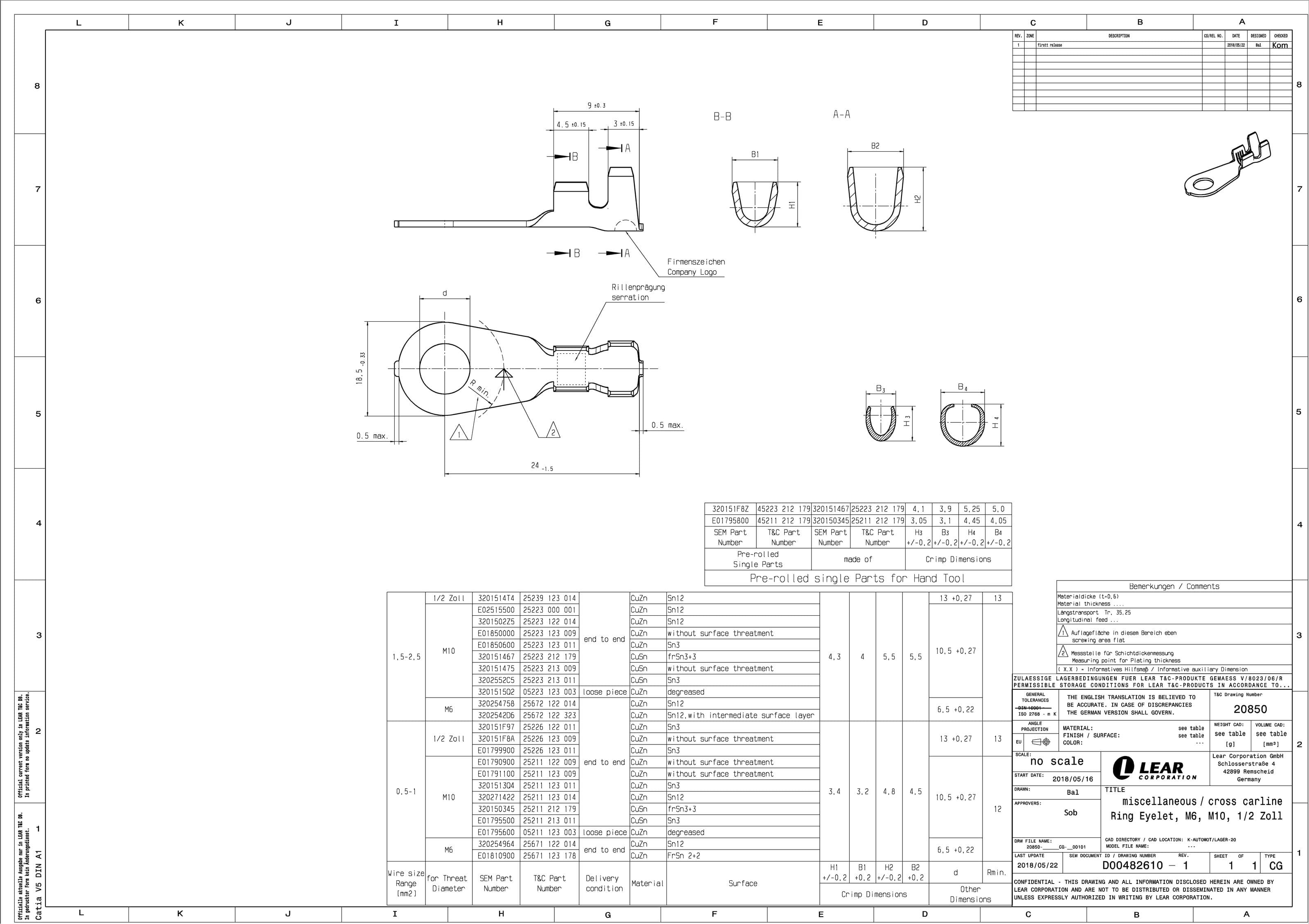

Click to see 3D model
Product Specification
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
Part Number: 320151475.
