TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- 320151186
Other properties
- Connection Technology
- Standard Crimp
- Thread Diameter [mm]
- M10
- Special feature for connection area
- Round Hole
- No. of wire connections
- 1
- Minimum Cable Cross section [mm²]
- 10
- Maximum Cable Cross section [mm²]
- 16
- Ring diameter inside [mm]
- 10.5
- Core Material
- CuZn
- Plating Material
- Sn
DOWNLOADS
Loading...

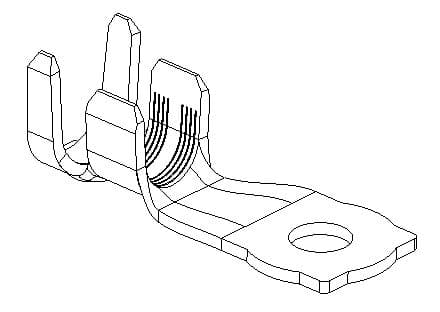

320151186 - RING TERMINAL M10
Part Number: 320151186
Click to see 3D model

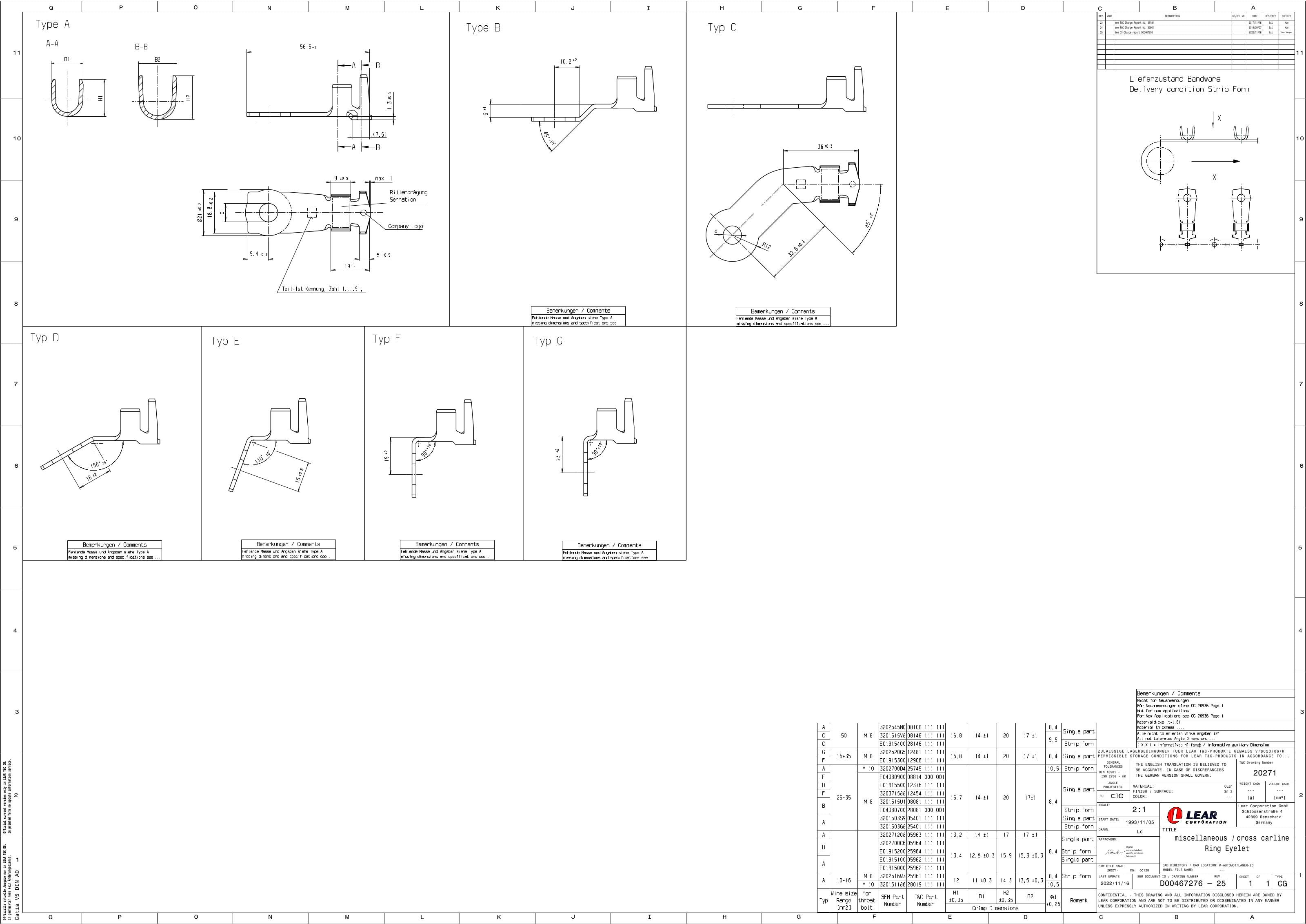

Product Specification
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
Part Number: 320151186.
