TECHNICAL INFORMATION

Identification

Product Category
EYELETS
Part Number
E09269300
Legacy Part Number
101640-CC12

Other properties

Connection Technology
Standard Crimp
Thread Diameter [mm]
M10
No. of wire connections
1
Minimum Cable Cross section [mm²]
0.41
Maximum Cable Cross section [mm²]
1.04
Ring diameter inside [mm]
10.29
Core Material
CuZn
Plating Material
Not Plated
RoHS
YES

DOWNLOADS

2D Drawing

2D Drawing E09269300

DOWNLOAD

3D PDF

3D PDF E09269300

DOWNLOAD

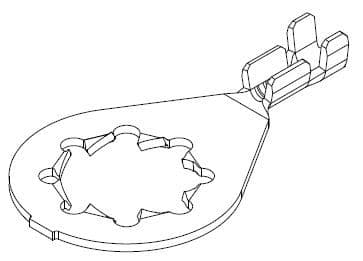

RING TERMINAL M10

Part Number: E09269300

RING TERMINAL M10

Product Specification

Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.

Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
