TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- E09019700
Other properties
- Connection Technology
- Standard Crimp
- Thread Diameter [mm]
- M10
- No. of wire connections
- 1
- Minimum Cable Cross section [mm²]
- 0.69
- Maximum Cable Cross section [mm²]
- 1.77
- Ring diameter inside [mm]
- 11.13
- Core Material
- CuZn
- Plating Material
- Sn

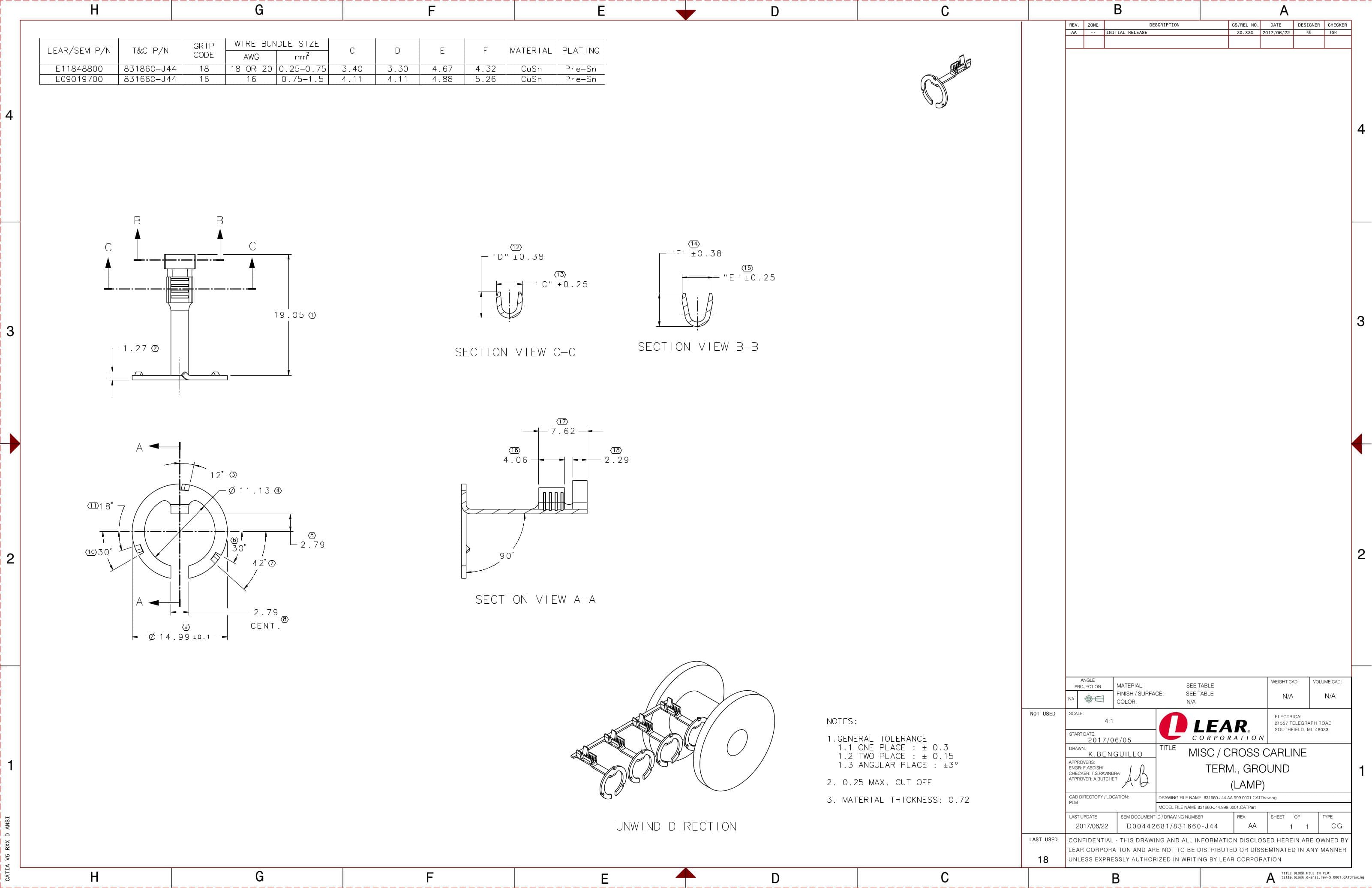

RING TERMINAL M10
Part Number: E09019700
Product Specification
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
