TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- E09672400
- Legacy Part Number
- 101440-S01
Other properties
- Connection Technology
- Standard Crimp
- Thread Diameter [mm]
- M10
- No. of wire connections
- 2
- Minimum Cable Cross section [mm²]
- 1.5
- Maximum Cable Cross section [mm²]
- 2.5
- Ring diameter inside [mm]
- 10.3
- Core Material
- CuZn
- Plating Material
- Not Plated
- RoHS
- YES
DOWNLOADS
Loading...

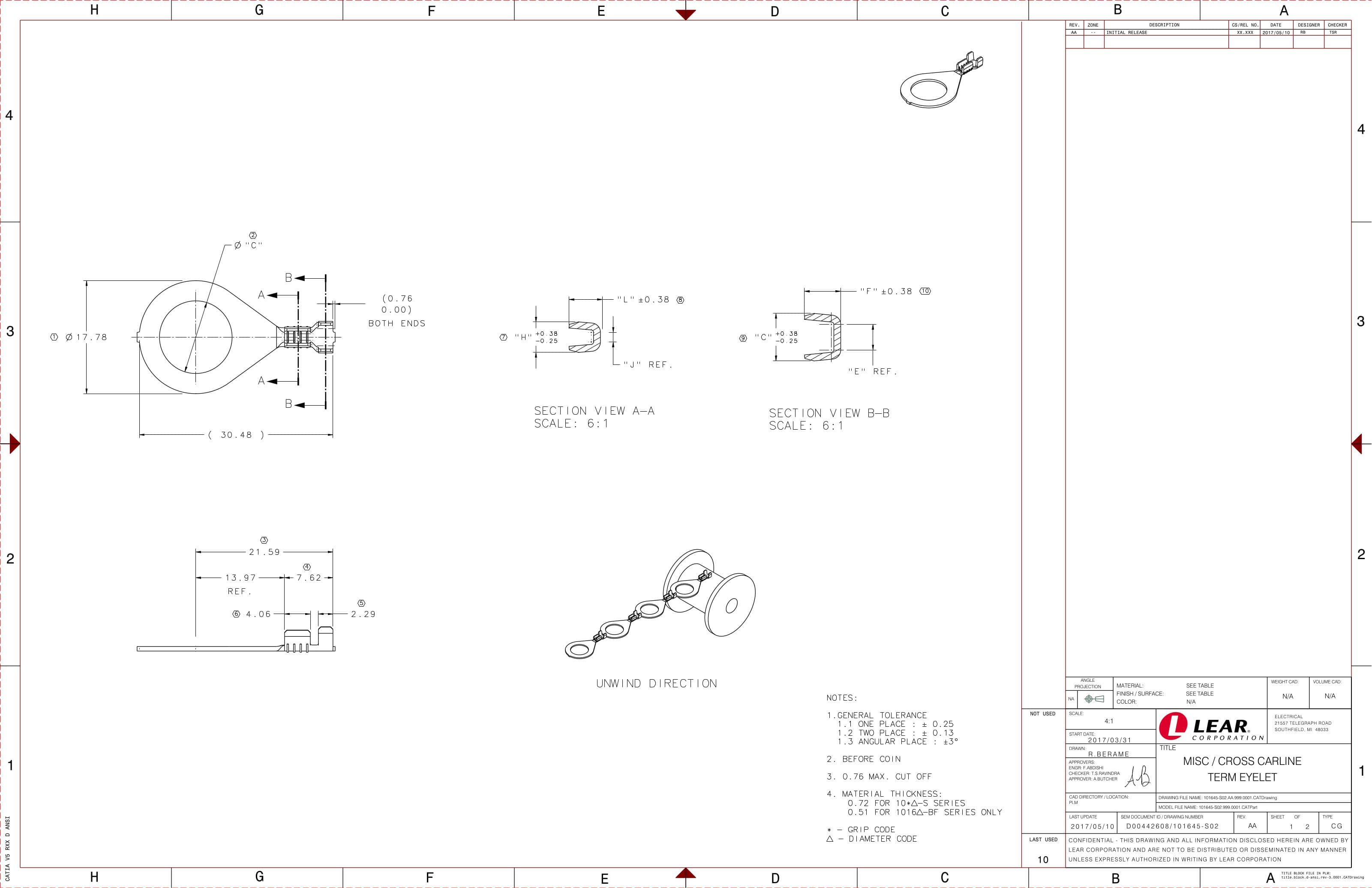

E09672400 - RING TERMINAL M10
Part Number: E09672400
Click to see 3D model
Product Specification
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
Part Number: E09672400, compatible with: 101440S01.
