TECHNICAL INFORMATION

Identification

Product Category
EYELETS
Part Number
E00654101

Other properties

Connection Technology
Ultrasonic Weld
Special feature for connection area
Round Hole, Anti-rotation
No. of wire connections
3
Minimum Cable Cross section [mm²]
5
Maximum Cable Cross section [mm²]
20
Ring diameter inside [mm]
6.3
Core Material
Cu
Plating Material
Not Plated
Min Temp (C)
-40
Max Temp (C)
125

DOWNLOADS

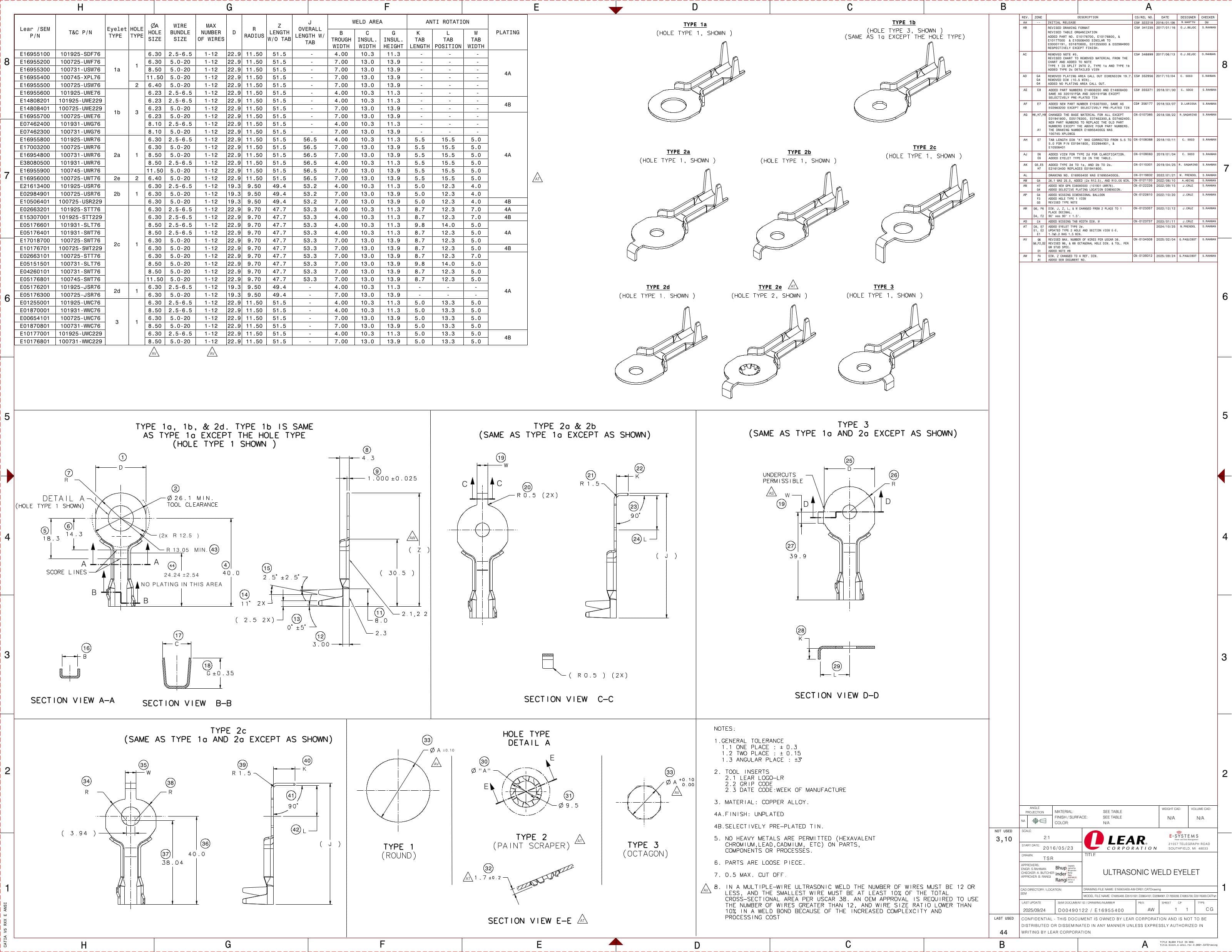

2D Drawing

2D Drawing E00654101

DOWNLOAD

RING TERMINAL ANTI-ROTATION

Part Number: E00654101

RING TERMINAL ANTI-ROTATION

Product Specification

Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.

Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
