TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- E01941800
Other properties
- Connection Technology
- Ultrasonic Weld
- Special feature for connection area
- Round Hole, Anti-rotation
- No. of wire connections
- 3
- Minimum Cable Cross section [mm²]
- 2.5
- Maximum Cable Cross section [mm²]
- 6.5
- Ring diameter inside [mm]
- 6.3
- Core Material
- Cu
- Plating Material
- Not Plated
- Min Temp (C)
- -40
- Max Temp (C)
- 125
DOWNLOADS
Loading...

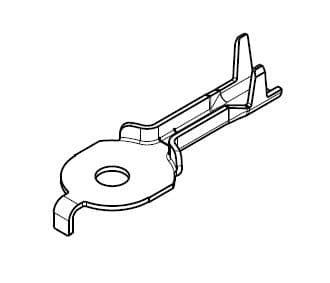

E01941800 - RING TERMINAL ANTI-ROTATION
Part Number: E01941800
Click to see 3D model
Product Specification
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
Part Number: E01941800.
