TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- E08929900
- Legacy Part Number
- 101606-U01
Other properties
- Connection Technology
- Standard Crimp
- No. of wire connections
- 1
- Minimum Cable Cross section [mm²]
- 0.5
- Maximum Cable Cross section [mm²]
- 1.5
- Ring diameter inside [mm]
- 1.72
- Core Material
- CuZn
- Plating Material
- Not Plated
- RoHS
- YES
DOWNLOADS
Loading...
E08929900 - RING TERMINAL
Part Number: E08929900

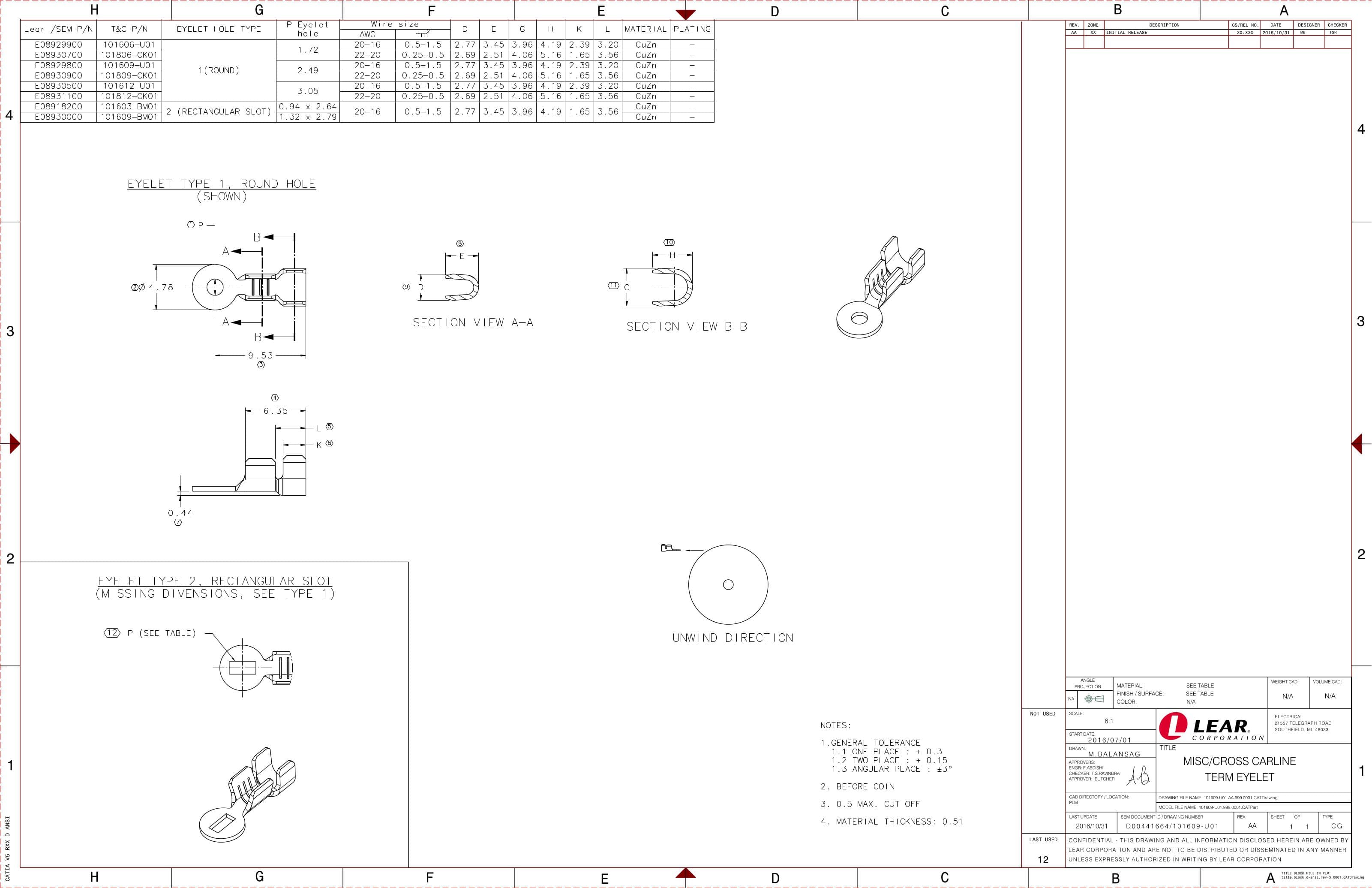

Click to see 3D model
Product Specification
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
Part Number: E08929900, compatible with: 101606U01.
