TECHNICAL INFORMATION

Identification

Product Category
EYELETS
Part Number
E09669600
Legacy Part Number
101647-BF02

Other properties

Connection Technology
Standard Crimp
No. of wire connections
2
Minimum Cable Cross section [mm²]
0.75
Maximum Cable Cross section [mm²]
1.5
Ring diameter inside [mm]
12.1
Core Material
CuZn
Plating Material
Sn
RoHS
YES

DOWNLOADS

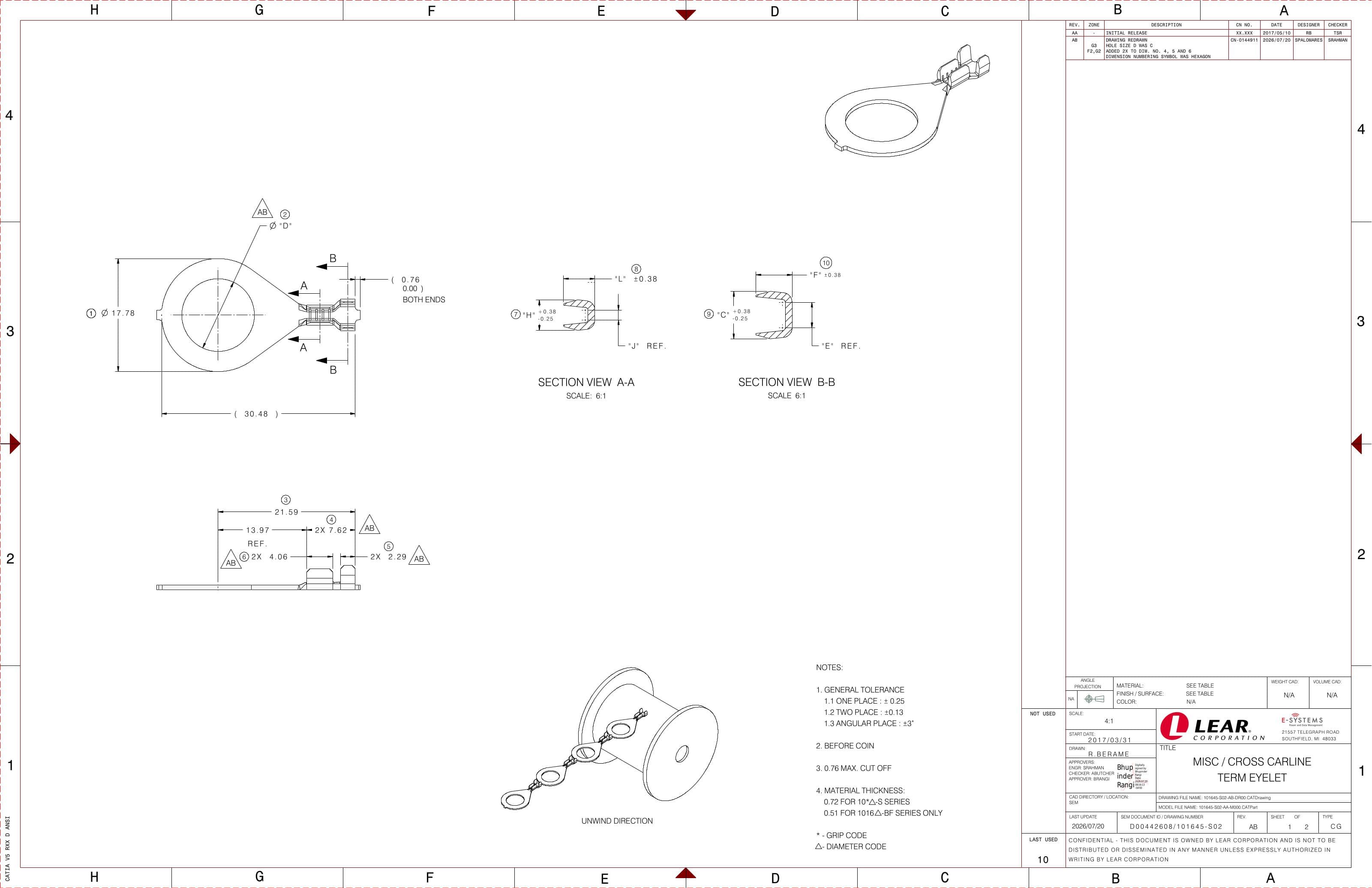

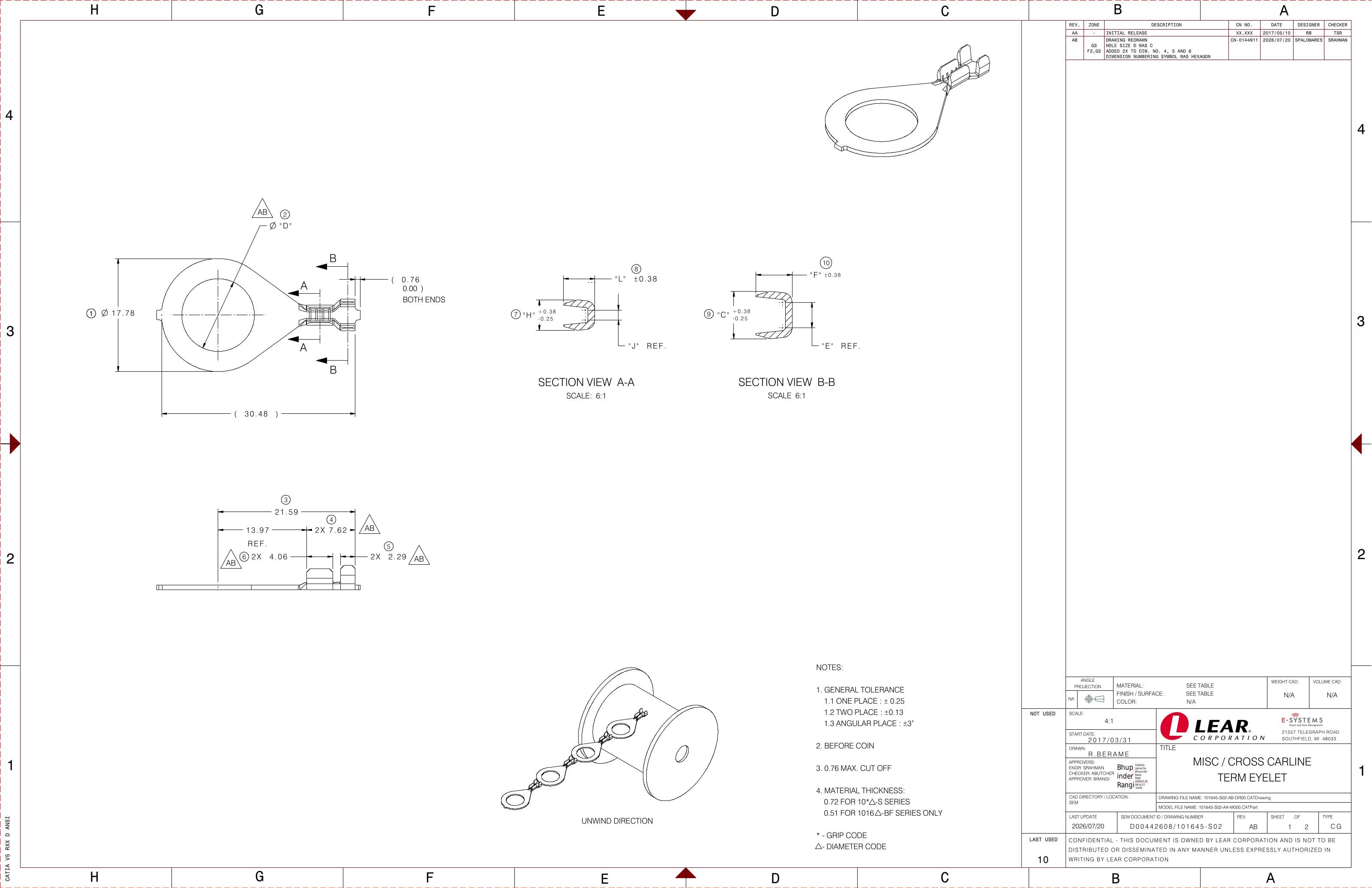

2D Drawing

2D Drawing E09669600

DOWNLOAD

3D PDF

3D PDF E09669600

DOWNLOAD

3D Cad

3D Cad E09669600

DOWNLOAD

Loading...

RING TERMINAL

Part Number: E09669600

Click to see 3D model

RING TERMINAL

Product Specification

Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.

Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
