TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- E03550800
- Legacy Part Number
- 28799000001
Other properties
- Connection Technology
- Standard Crimp
- Shape
- Straight
- Thread Diameter [mm]
- M8
- No. of wire connections
- 1
- Minimum Cable Cross section [mm²]
- 35
- Maximum Cable Cross section [mm²]
- 50
- Ring diameter inside [mm]
- 8.4
- Core Material
- Cu
- Plating Material
- Sn
- Max Temp (C)
- 125

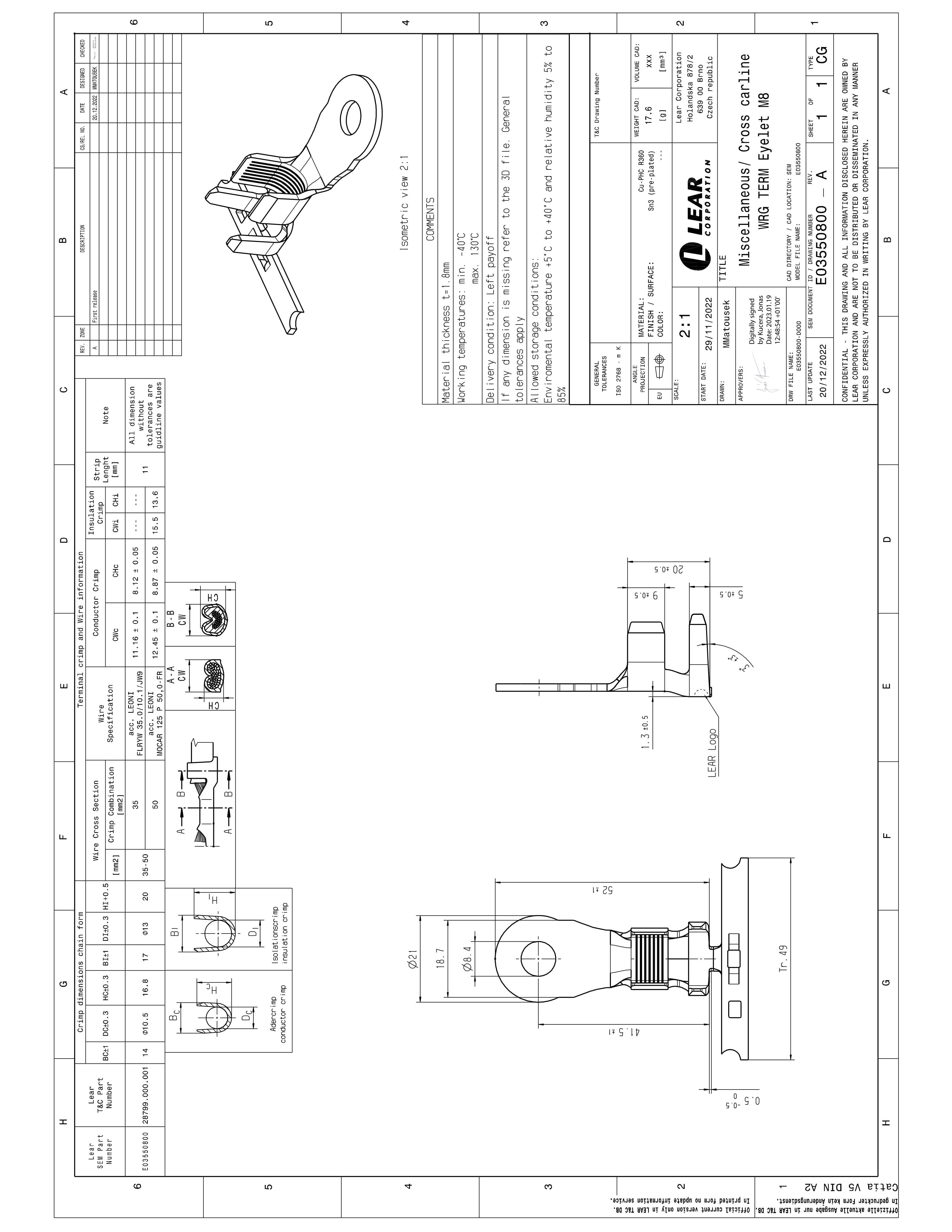

2D Drawing
2D Drawing E03550800

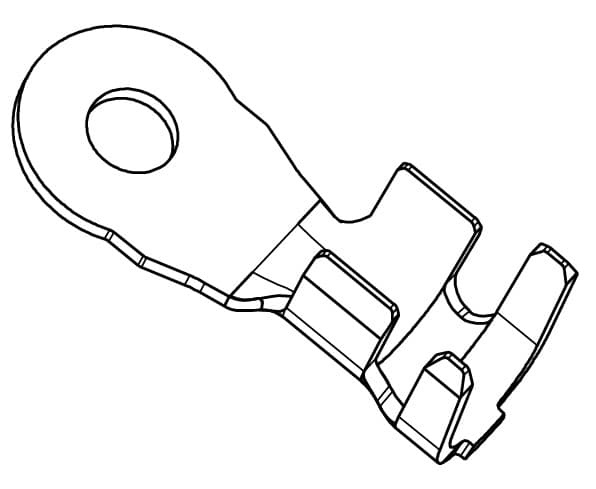

E03550800 - EYELET TERMINAL
Part Number: E03550800
Product Specification
Previously cataloged under part number 28799000001.
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
Part Number: E03550800.
