TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- E08871700
- Legacy Part Number
- 100840-CF31
Other properties
- Connection Technology
- Standard Crimp
- No. of wire connections
- 3
- Minimum Cable Cross section [mm²]
- 3.07
- Maximum Cable Cross section [mm²]
- 7.86
- Ring diameter inside [mm]
- 10.3
- Core Material
- Cu
- Plating Material
- Sn
DOWNLOADS
Loading...

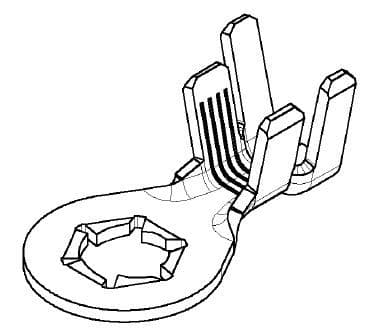

E08871700 - EYELET TERMINAL
Part Number: E08871700
Click to see 3D model
Product Specification
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
Part Number: E08871700.
