TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- E08848900
- Legacy Part Number
- 110628-CF12
Other properties
- Connection Technology
- Standard Crimp
- No. of wire connections
- 3
- Minimum Cable Cross section [mm²]
- 4.68
- Maximum Cable Cross section [mm²]
- 12.01
- Ring diameter inside [mm]
- 7
- Core Material
- CuZn
- Plating Material
- Not Plated
DOWNLOADS
Loading...

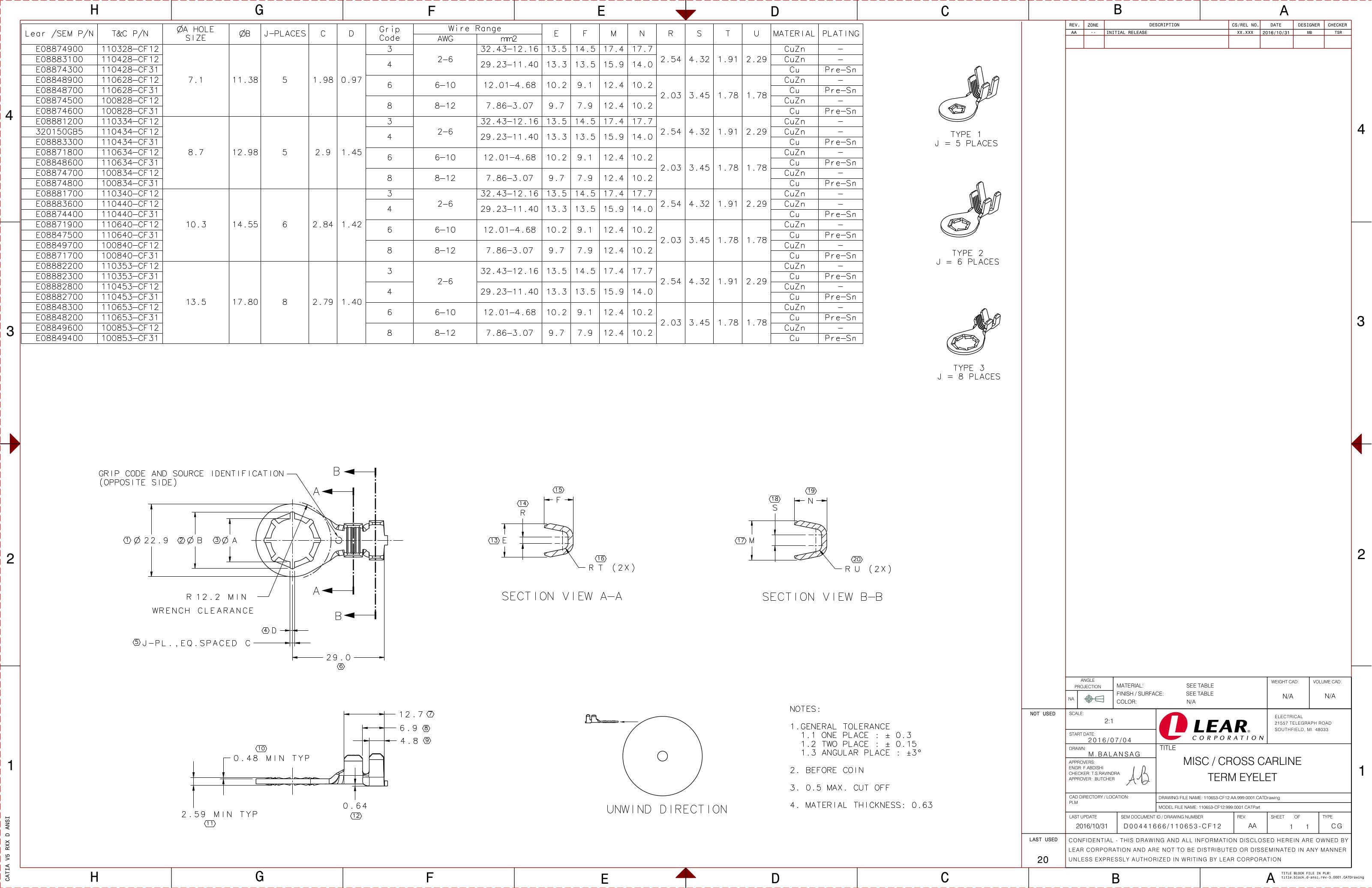

E08848900 - EYELET TERMINAL
Part Number: E08848900
Click to see 3D model
Product Specification
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
Part Number: E08848900.
