TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- E05151501
Other properties
- Connection Technology
- Ultrasonic Weld
- Thread Diameter [mm]
- M8
- Special feature for connection area
- Round Hole, Anti-rotation
- No. of wire connections
- 3
- Minimum Cable Cross section [mm²]
- 5
- Maximum Cable Cross section [mm²]
- 20
- Ring diameter inside [mm]
- 8.5
- Core Material
- Cu
- Plating Material
- Not Plated
- Min Temp (C)
- -40
- Max Temp (C)
- 125
DOWNLOADS
2D Drawing
2D Drawing E05151501

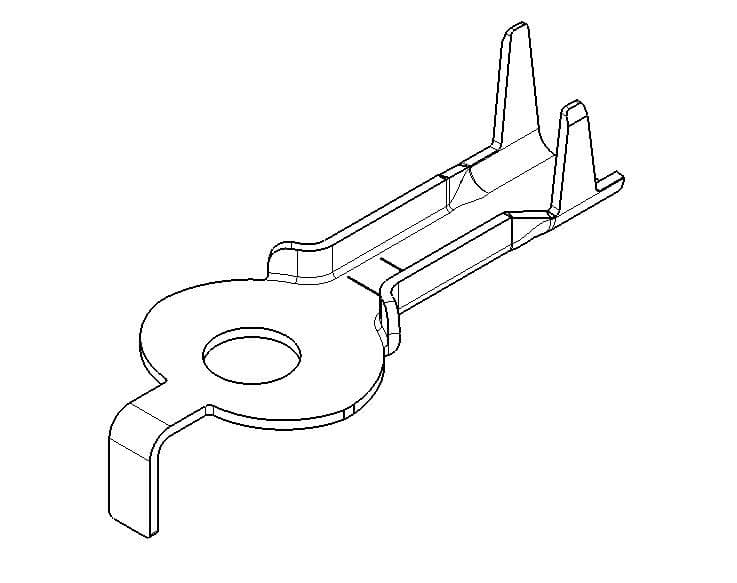

RING TERMINAL M8, ANTI-ROTATION
Part Number: E05151501
Product Specification
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
