TECHNICAL INFORMATION

Identification

Product Category
EYELETS
Part Number
E02261300
Legacy Part Number
26754000001

Other properties

Connection Technology
Standard Crimp
Thread Diameter [mm]
M6
Special feature for connection area
With Nut
No. of wire connections
2
Minimum Cable Cross section [mm²]
6
Maximum Cable Cross section [mm²]
10
Core Material
CuSn
Plating Material
Sn

DOWNLOADS

2D Drawing

2D Drawing E02261300

DOWNLOAD

3D PDF

3D PDF E02261300

DOWNLOAD

3D Cad

3D Cad E02261300

DOWNLOAD

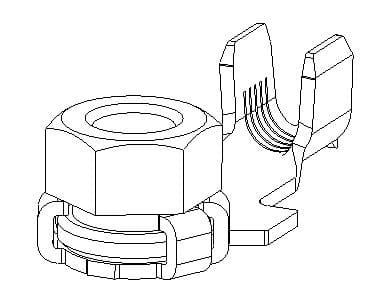

CLAW RING TERMINAL WITH M6 NUT

Part Number: E02261300

CLAW RING TERMINAL WITH M6 NUT

Product Specification

Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.

Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
