TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- 3202540S2
- Legacy Part Number
- 28071212179
Other properties
- Connection Technology
- Standard Crimp
- Thread Diameter [mm]
- M6
- Special feature for connection area
- With Nut
- No. of wire connections
- 1
- Minimum Cable Cross section [mm²]
- 1.5
- Maximum Cable Cross section [mm²]
- 2.5
- Core Material
- CuSn
- Plating Material
- Sn
DOWNLOADS
Loading...

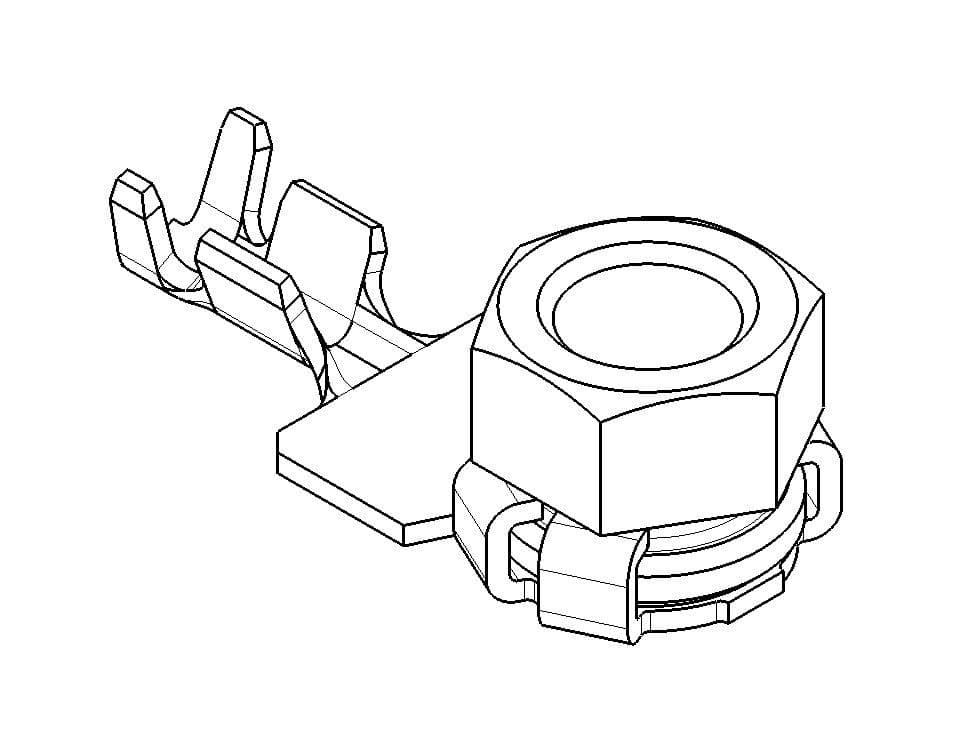

3202540S2 - CLAW RING TERMINAL WITH M6 NUT
Part Number: 3202540S2
Click to see 3D model
Product Specification
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
Part Number: 3202540S2.
