TECHNICAL INFORMATION

Identification

Product Category
EYELETS
Part Number
3201512J0
Legacy Part Number
28333331179

Other properties

Connection Technology
Standard Crimp
Thread Diameter [mm]
M5
Special feature for connection area
With Nut
No. of wire connections
1
Minimum Cable Cross section [mm²]
10
Maximum Cable Cross section [mm²]
16
Ring diameter inside [mm]
5
Core Material
CuFe
Plating Material
Sn

DOWNLOADS

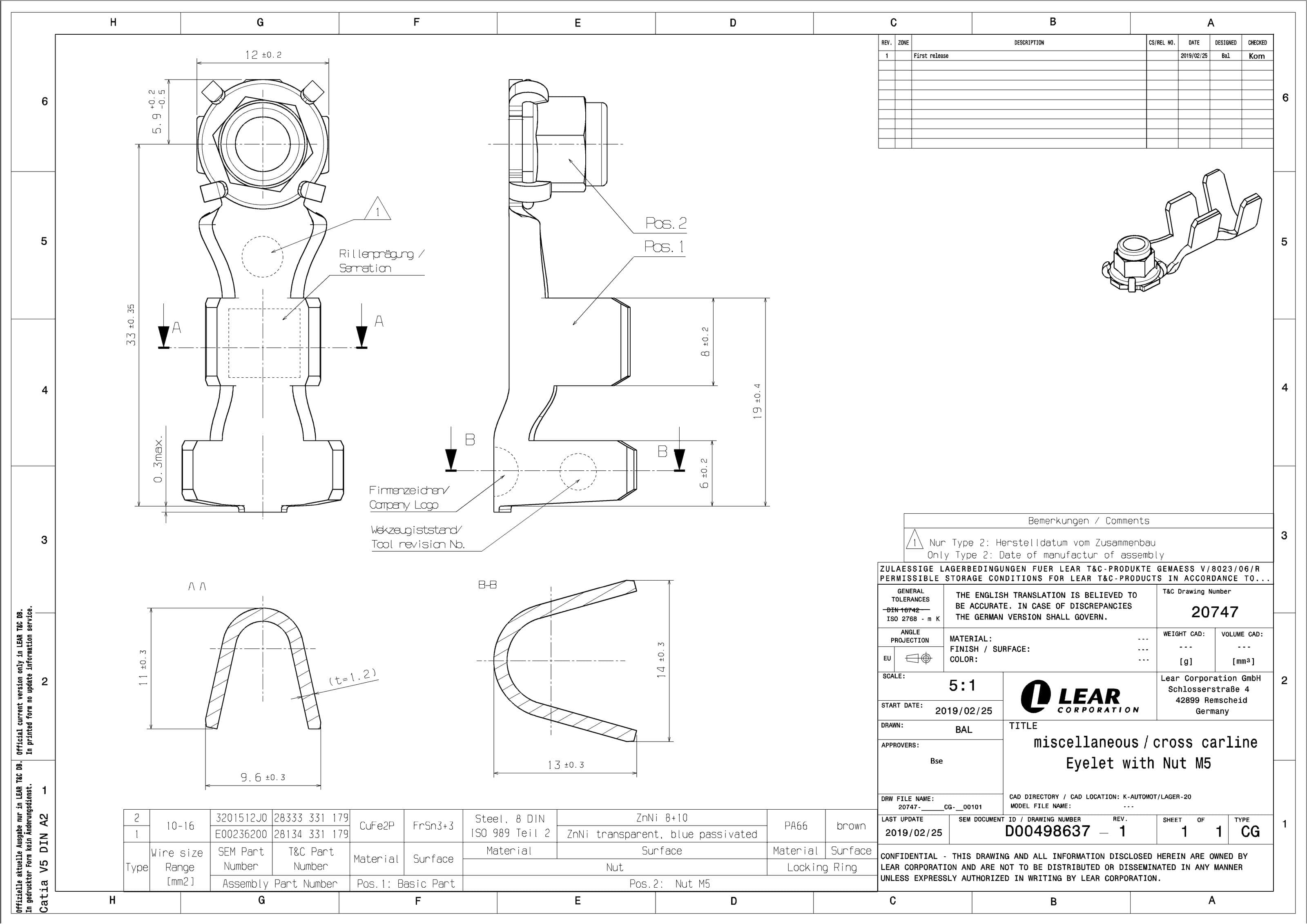

2D Drawing

2D Drawing 3201512J0

DOWNLOAD

3D PDF

3D PDF 3201512J0

DOWNLOAD

3D Cad

3D Cad 3201512J0

DOWNLOAD

Loading...

3201512J0 - CLAW RING TERMINAL WITH M5 NUT

Part Number: 3201512J0

Click to see 3D model

CLAW RING TERMINAL WITH M5 NUT

Product Specification

Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.

Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.

Part Number: 3201512J0.
