TECHNICAL INFORMATION
Identification
- Product Category
- EYELETS
- Part Number
- 320151F7Z
- Legacy Part Number
- 28335331179
Other properties
- Connection Technology
- Standard Crimp
- Thread Diameter [mm]
- M5
- Special feature for connection area
- With Nut
- No. of wire connections
- 1
- Minimum Cable Cross section [mm²]
- 6
- Maximum Cable Cross section [mm²]
- 10
- Ring diameter inside [mm]
- 5.4
- Core Material
- Cu
- Plating Material
- Sn
DOWNLOADS
Loading...

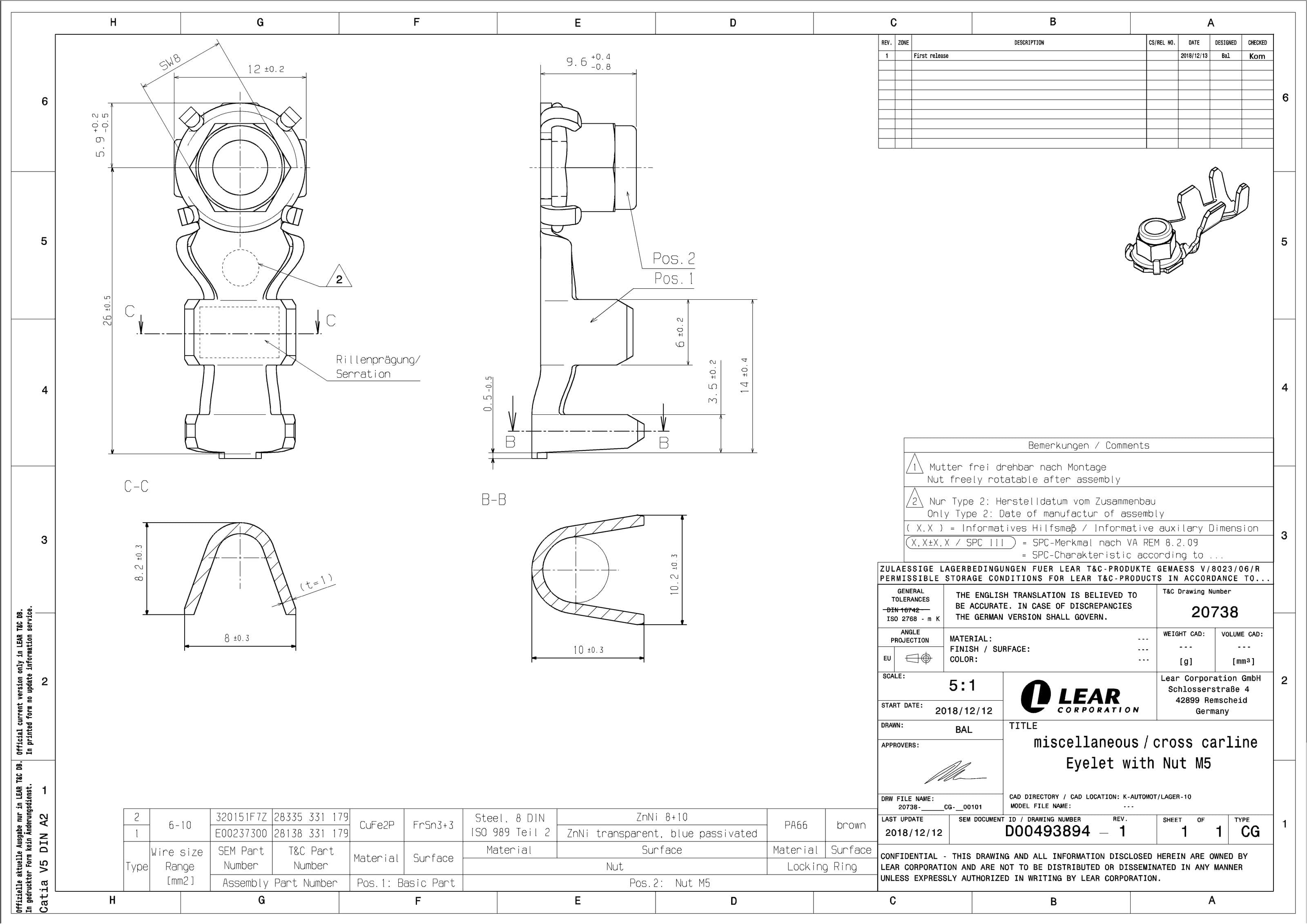

320151F7Z - CLAW RING TERMINAL WITH M5 NUT
Part Number: 320151F7Z
Click to see 3D model
Product Specification
Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.
Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
Part Number: 320151F7Z.
