TECHNICAL INFORMATION

Identification

Product Category
EYELETS
Part Number
3201515F6
Legacy Part Number
25360212179

Other properties

Connection Technology
Standard Crimp
Thread Diameter [mm]
M4
Special feature for connection area
With Nut
No. of wire connections
1
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
Core Material
CuSn
Plating Material
Sn

DOWNLOADS

2D Drawing

2D Drawing 3201515F6

DOWNLOAD

3D PDF

3D PDF 3201515F6

DOWNLOAD

3D Cad

3D Cad 3201515F6

DOWNLOAD

Loading...

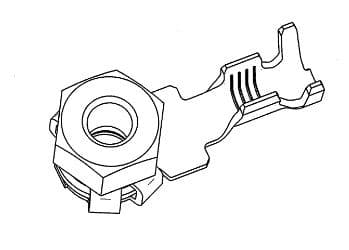

CLAW RING TERMINAL WITH M4 NUT

Part Number: 3201515F6

Click to see 3D model

CLAW RING TERMINAL WITH M4 NUT

Product Specification

Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.

Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
