TECHNICAL INFORMATION

Identification

Product Category
EYELETS
Part Number
320151FG2
Legacy Part Number
101634-CC44

Other properties

Connection Technology
Standard Crimp
Thread Diameter [mm]
M8
No. of wire connections
1
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
Ring diameter inside [mm]
8.71
Core Material
Cu
Plating Material
Sn
RoHS
YES

DOWNLOADS

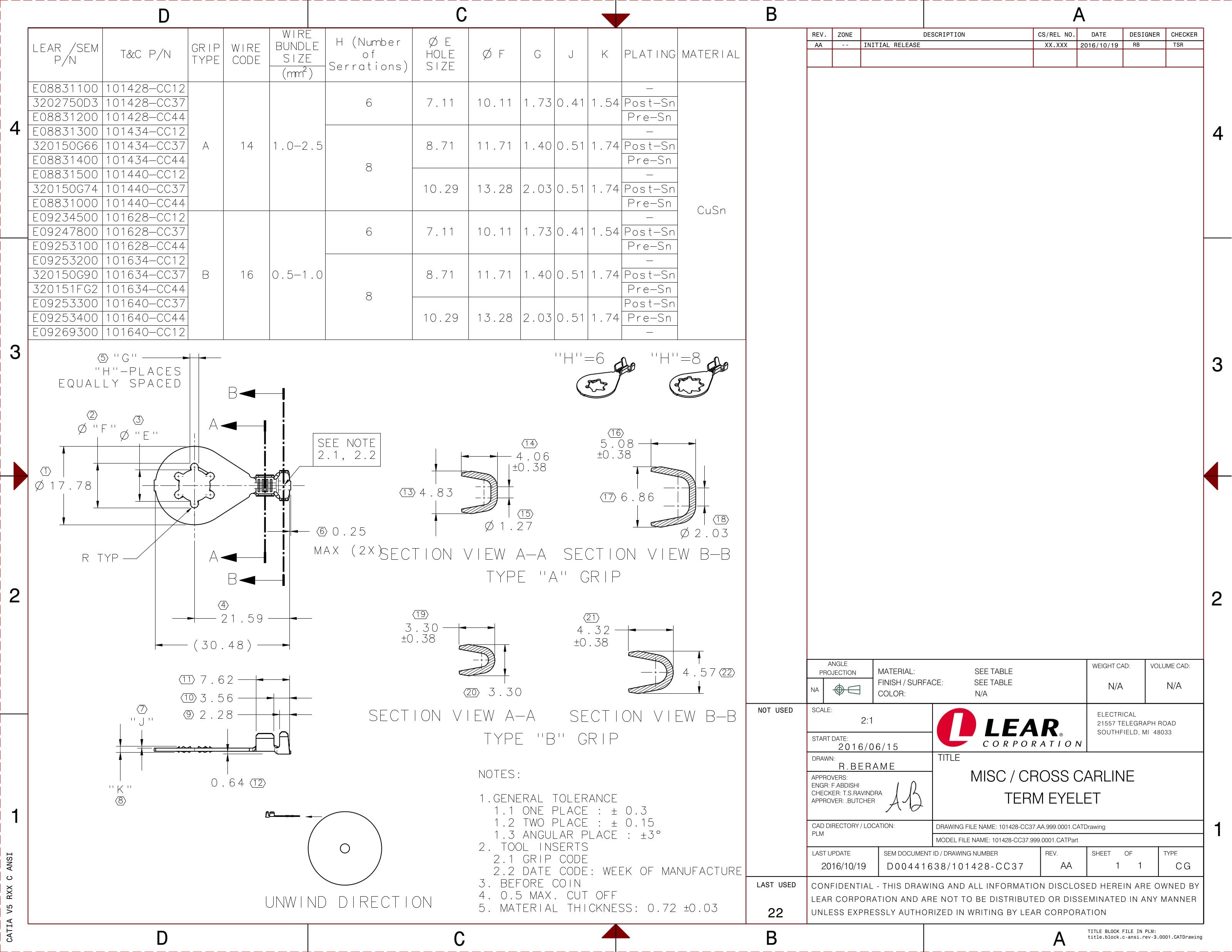

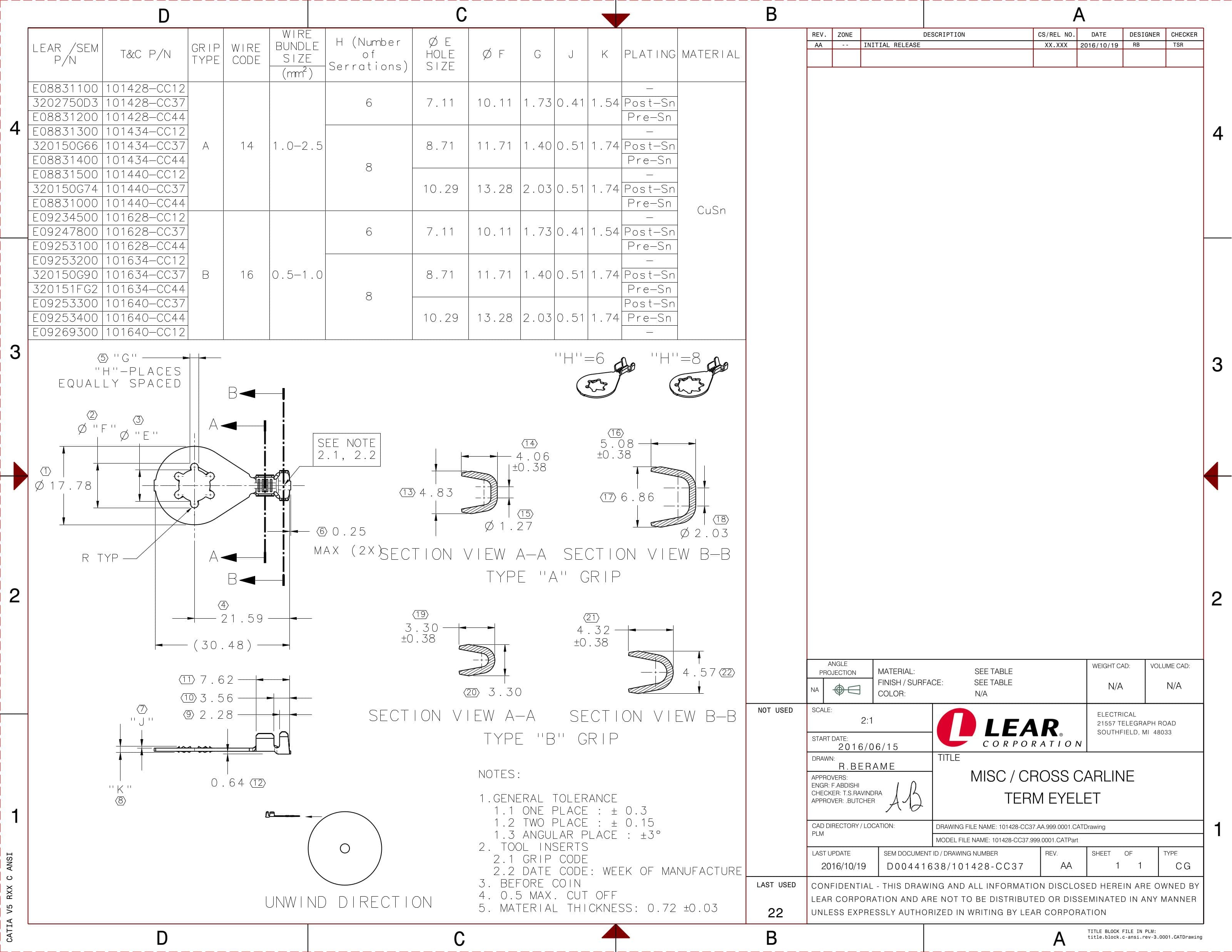

2D Drawing

2D Drawing 320151FG2

DOWNLOAD

3D PDF

3D PDF 320151FG2

DOWNLOAD

RING TERMINAL M8

Part Number: 320151FG2

RING TERMINAL M8

Product Specification

Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.

Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
