TECHNICAL INFORMATION

Identification

Product Category
EYELETS
Part Number
320151F4M

Other properties

Connection Technology
Standard Crimp
Shape
Bent
Thread Diameter [mm]
M8
No. of wire connections
1
Minimum Cable Cross section [mm²]
21
Maximum Cable Cross section [mm²]
35
Ring diameter inside [mm]
8.4
Core Material
CuZn
Plating Material
Sn

DOWNLOADS

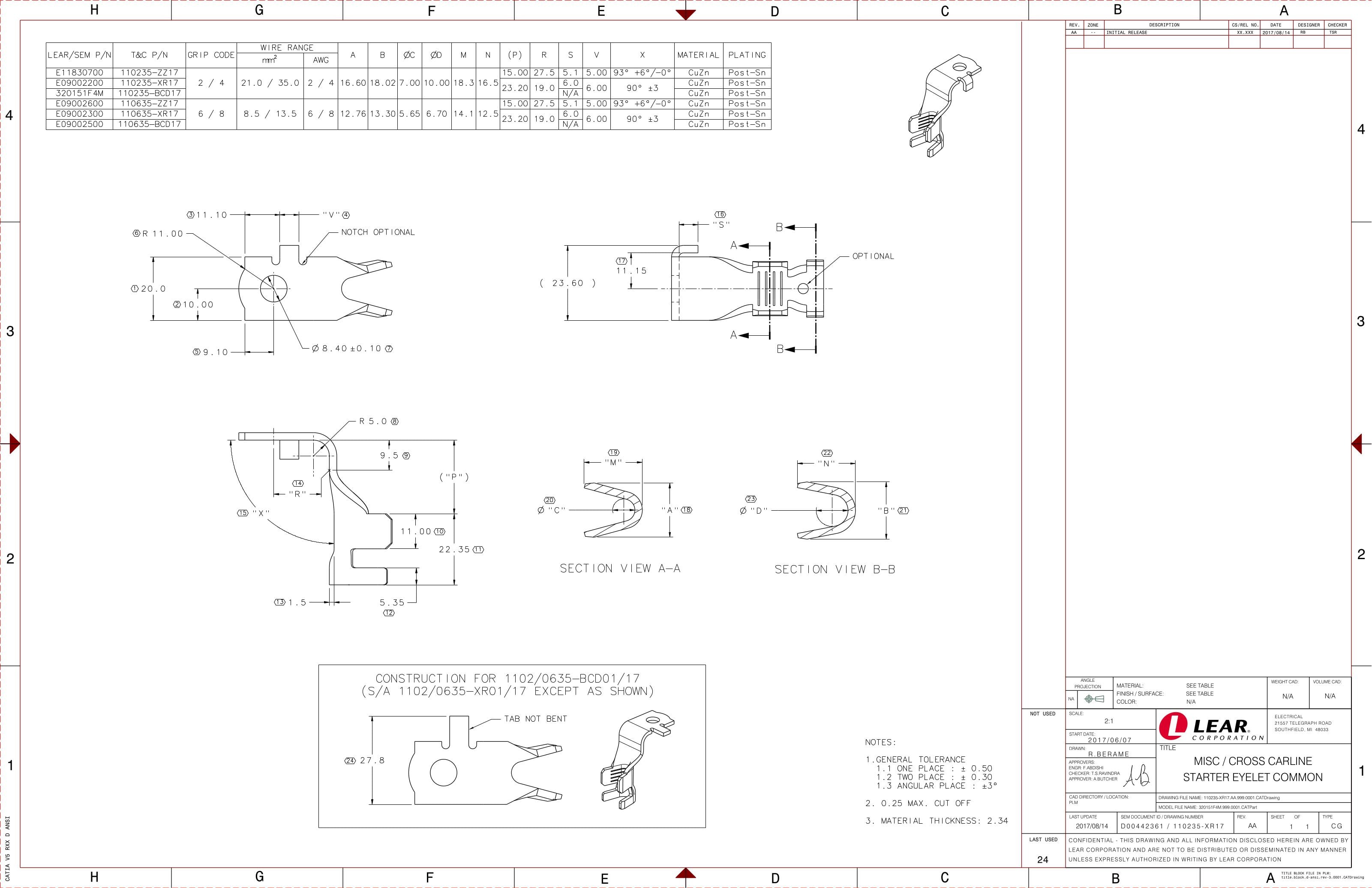

2D Drawing

2D Drawing 320151F4M

DOWNLOAD

3D PDF

3D PDF 320151F4M

DOWNLOAD

3D Cad

3D Cad 320151F4M

DOWNLOAD

Loading...

RING TERMINAL M8

Part Number: 320151F4M

Click to see 3D model

RING TERMINAL M8

Product Specification

Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.

Several Eyelet types and customized configuration possibilities enable to find the best solution for a broad range of automotive applications.
