TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- 3216786R0
- Legacy Part Number
- 18242000000
- Product Family
- MKR
Other properties
- No. of cavities
- 5
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 1.5
- Sealable
- Sealed
- Connector Application
- Commercial Vehicles, Alternator
- Mechanical coding
- 2
Loading...
3216786R0 - 5way MKR 1.5 Receptacle Sealed Connector, Code 2
Part Number: 3216786R0

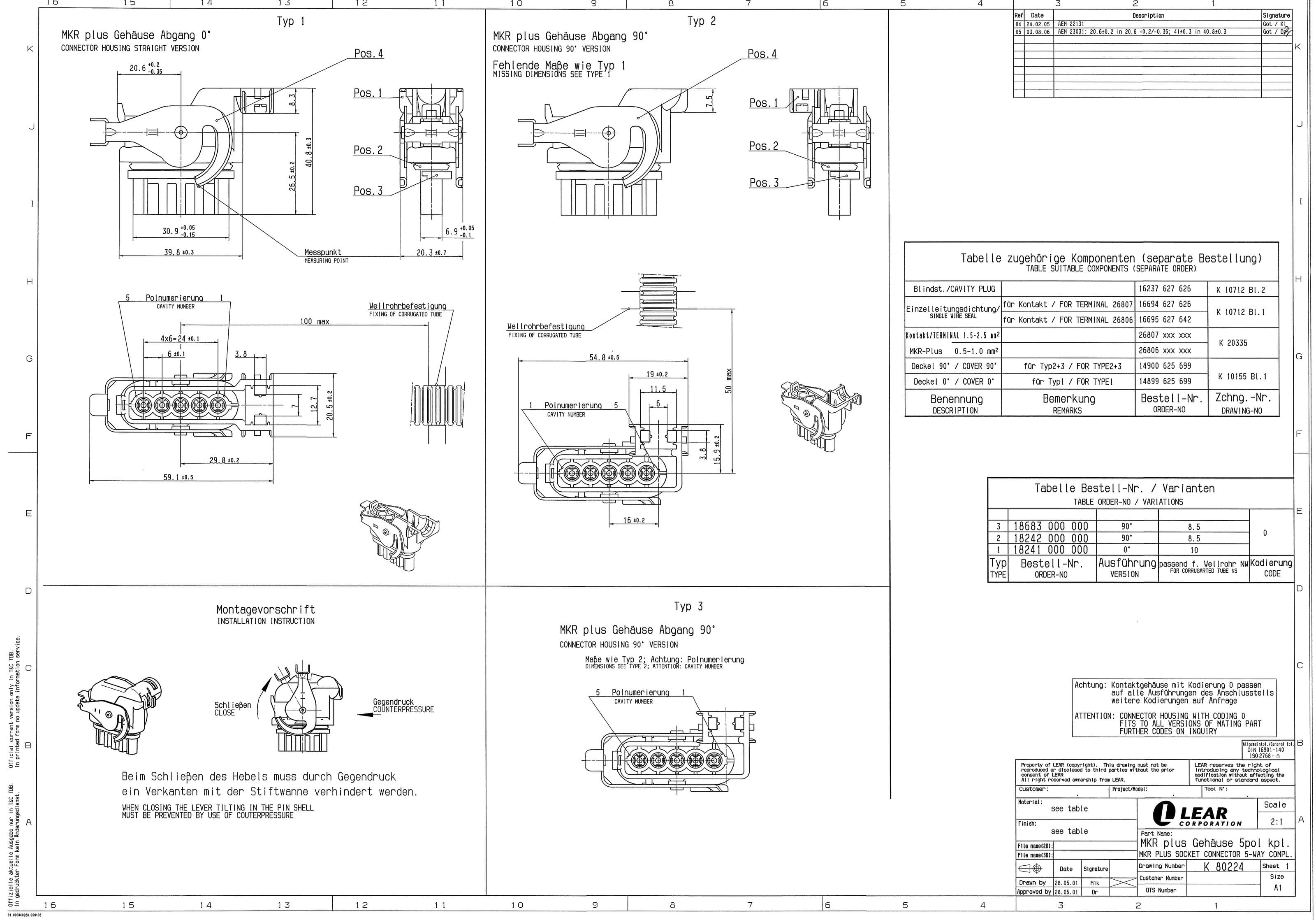

Click to see 3D model
Product Specification
Previously cataloged under part number 18242000000.
This connector belongs to the MKR product family within the CONNECTORS category, configured as a 5-cavity receptacle with a terminal size of 1.5 mm. The connector is sealed, providing protection against moisture and environmental ingress.
Primarily designed for commercial vehicle and alternator applications in automotive vehicles.
Mechanical coding 2 serves as a poka-yoke mating feature, ensuring correct connector orientation and preventing mis-mating during assembly.
Part Number: 3216786R0.
