TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E01588400
- Legacy Part Number
- 19336000001
- Product Family
- AFS, MAS
Other properties
- No. of cavities
- 4
- Terminal Type
- Tab
- Terminal Size [mm]
- 2.8, 12
- Sealable
- Sealed
- TPA
- With TPA
- Color
- BLACK
- Min Temp (C)
- -40
- Max Temp (C)
- 125
- Connector Application
- Inline, Cooling Fan, HVAC
- Mechanical coding
- A
2D Drawing

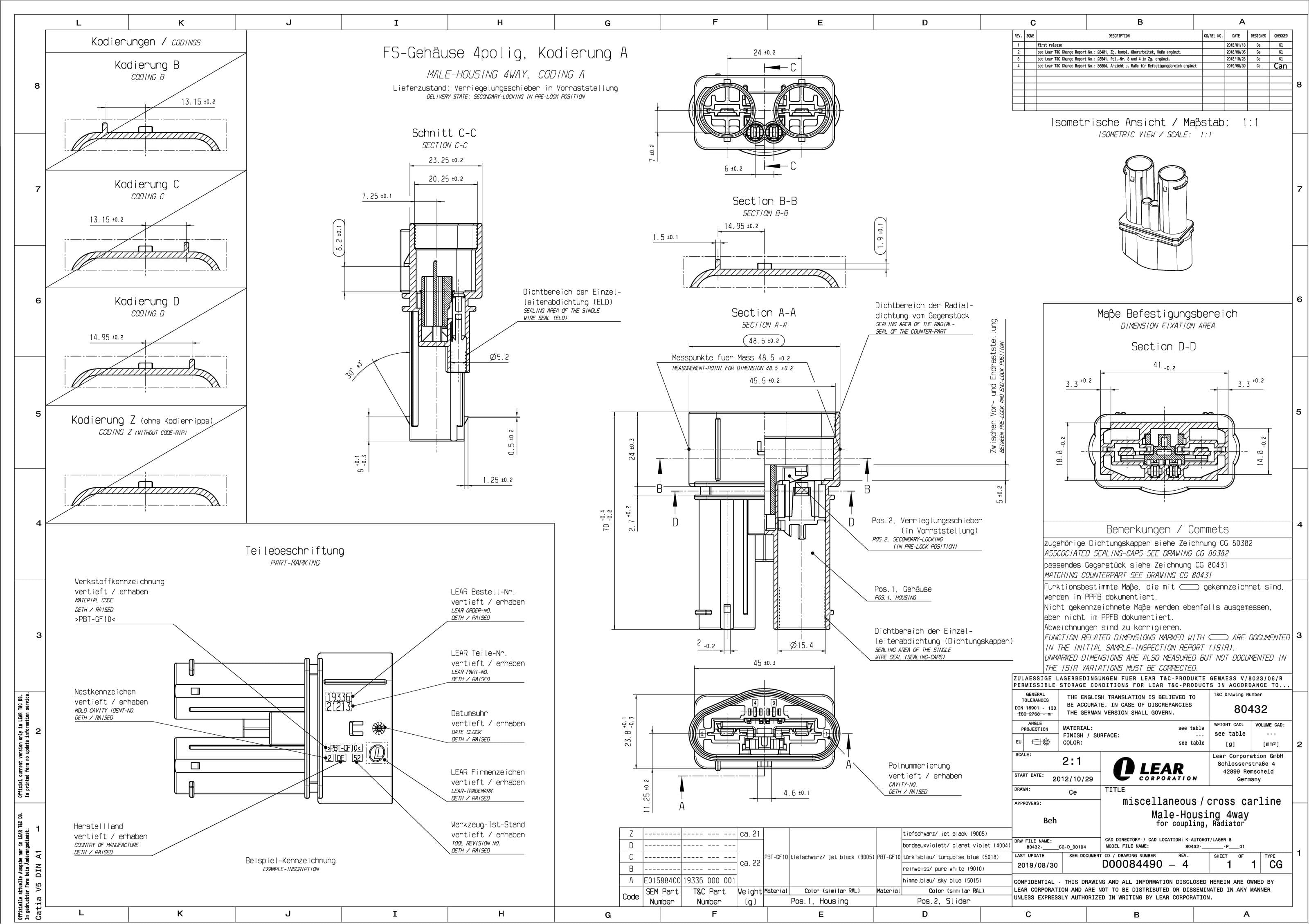

2D Drawing E01588400
E01588400 - 4way AFS/MAS 2.8/12 Tab Sealed Black Connector, Code A
Part Number: E01588400
Product Specification
Previously cataloged under part number 19336000001.
This connector features 4 cavities and is fully sealed, accommodating tab terminals in sizes 2.8 mm and 12 mm. It belongs to the Connectors product category within the AFS and MAS product families.
Primarily designed for inline, cooling fan, and HVAC applications in automotive vehicles.
Mechanical coding A provides a poka-yoke mating feature to prevent incorrect connector pairing. The connector is equipped with Terminal Position Assurance (TPA) to secure terminals reliably in position.
The main connector part is molded in PBT GF with a dominant black color. The operating temperature range spans -40 to 125 °C.
Part Number: E01588400.

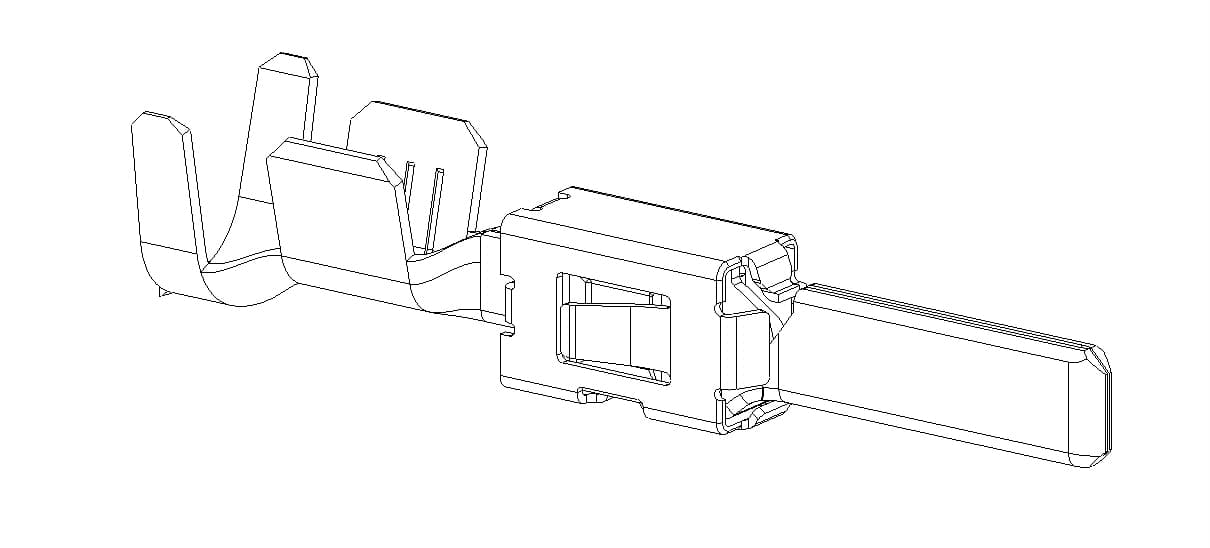

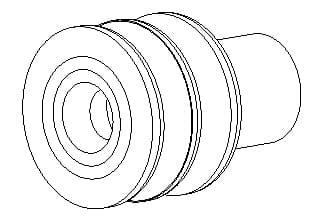

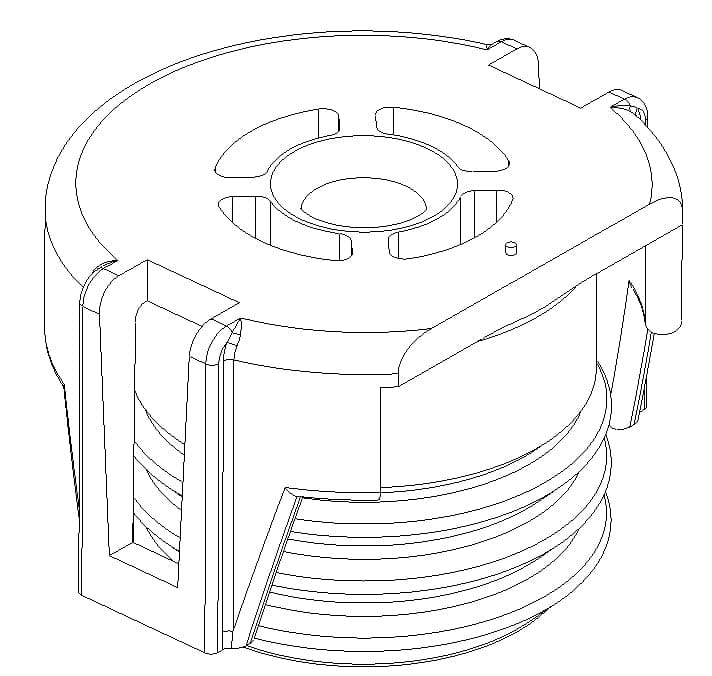

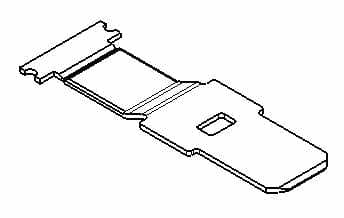

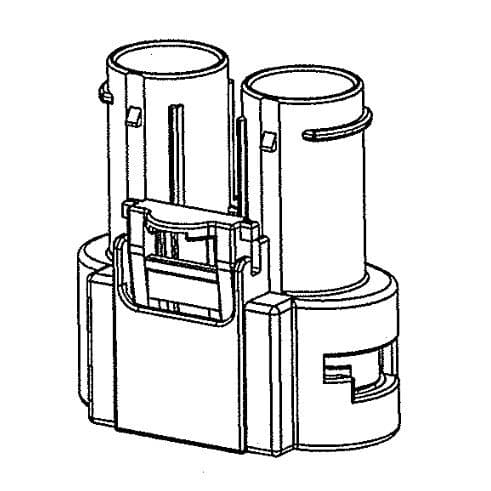

This product requires other components for a fully functional assembly configuration:
